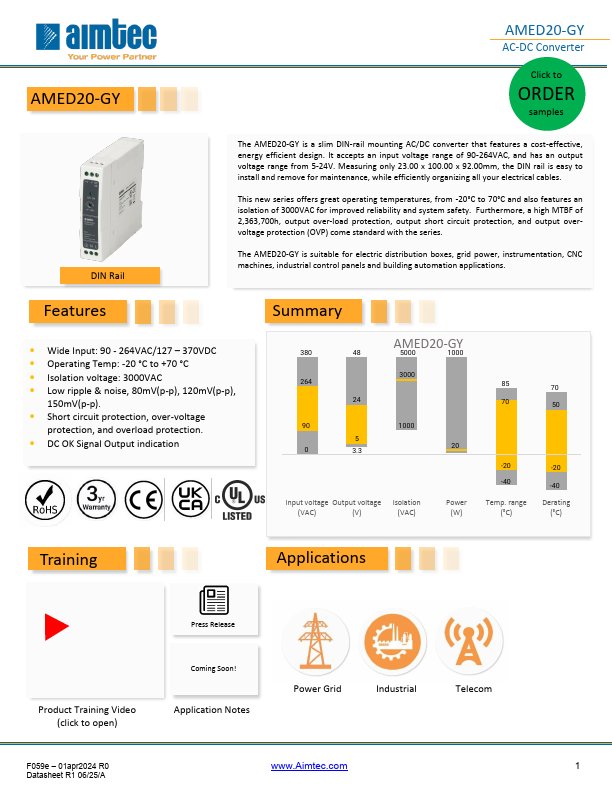

Datasheet Summary
AC-DC Converter
Click to
ORDER samples
DIN Rail
The AMED20-GY is a slim DIN-rail mounting AC/DC converter that Features a cost-effective, energy efficient design. It accepts an input voltage range of 90-264VAC, and has an output voltage range from 5-24V. Measuring only 23.00 x 100.00 x 92.00mm, the DIN rail is easy to install and remove for maintenance, while efficiently organizing all your electrical cables.
This new series offers great operating temperatures, from -20°C to 70°C and also Features an isolation of 3000VAC for improved reliability and system safety. Furthermore, a high MTBF of 2,363,700h, output over-load protection, output short circuit protection,...
