Datasheet Summary
AC-DC Converter
Click to
ORDER samples
DIN Rail

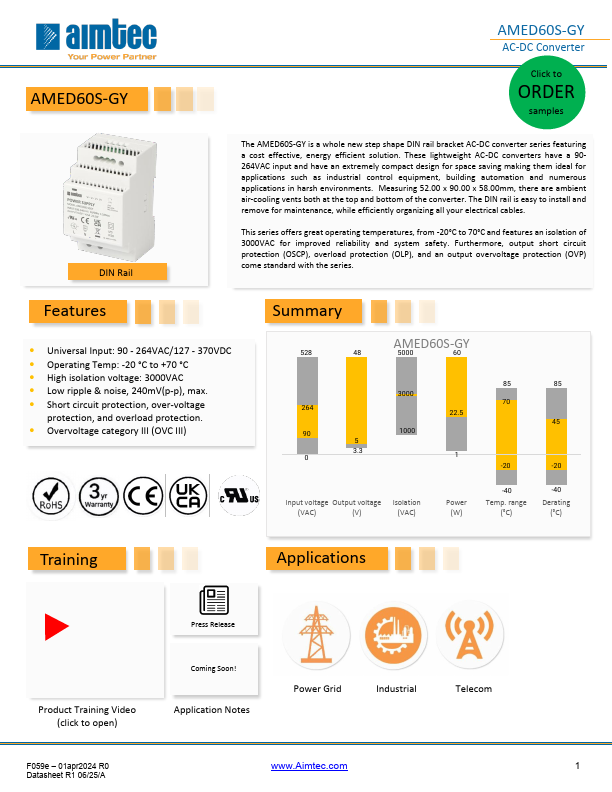

The AMED60S-GY is a whole new step shape DIN rail bracket AC-DC converter series featuring a cost effective, energy efficient solution. These lightweight AC-DC converters have a 90264VAC input and have an extremely pact design for space saving making them ideal for applications such as industrial control equipment, building automation and numerous applications in harsh environments. Measuring 52.00 x 90.00 x 58.00mm, there are ambient air-cooling vents both at the top and bottom of the converter. The DIN rail is easy to install and remove for maintenance, while efficiently organizing all your electrical...
