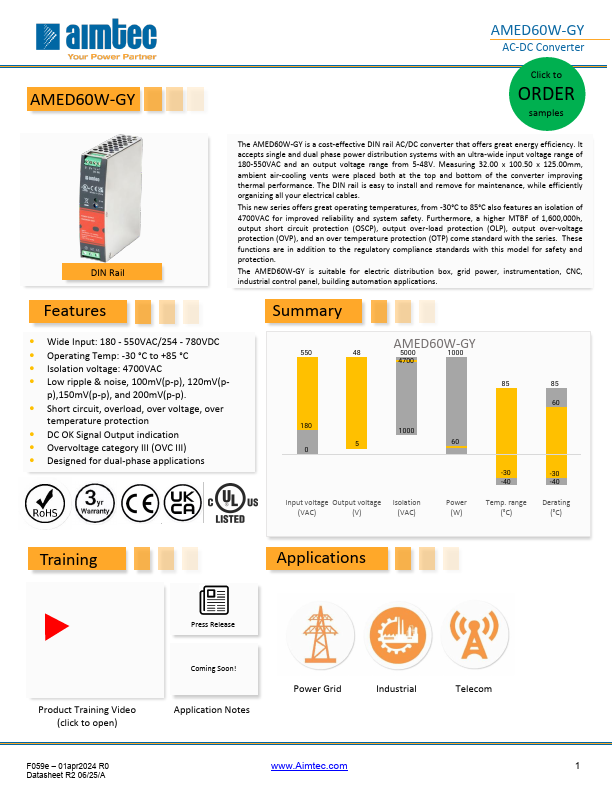

Datasheet Summary
AC-DC Converter
Click to
ORDER samples
DIN Rail
Features
The AMED60W-GY is a cost-effective DIN rail AC/DC converter that offers great energy efficiency. It accepts single and dual phase power distribution systems with an ultra-wide input voltage range of 180-550VAC and an output voltage range from 5-48V. Measuring 32.00 x 100.50 x 125.00mm, ambient air-cooling vents were placed both at the top and bottom of the converter improving thermal performance. The DIN rail is easy to install and remove for maintenance, while efficiently organizing all your electrical cables. This new series offers great operating temperatures, from -30°C to 85°C also Features an isolation...
