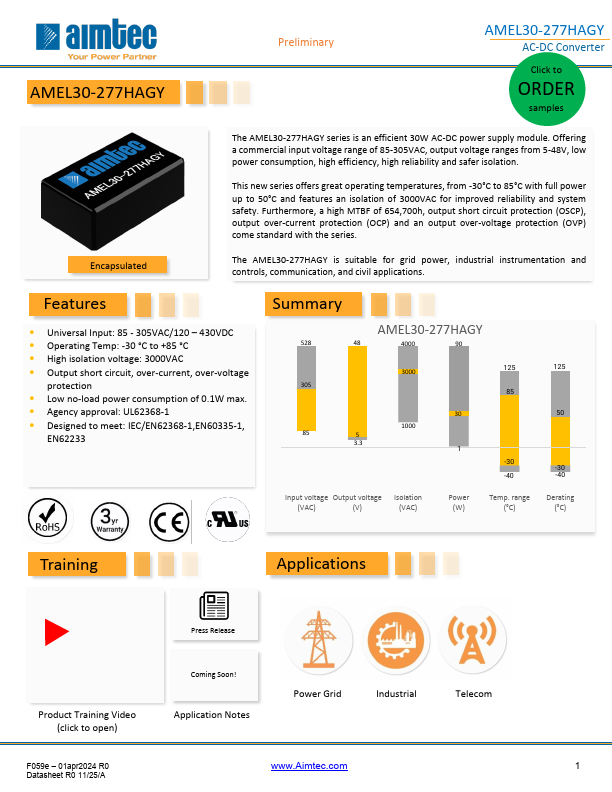

Datasheet Summary
Preliminary
AC-DC Converter
Click to
ORDER samples
Encapsulated
The AMEL30-277HAGY series is an efficient 30W AC-DC power supply module. Offering a mercial input voltage range of 85-305VAC, output voltage ranges from 5-48V, low power consumption, high efficiency, high reliability and safer isolation.
This new series offers great operating temperatures, from -30°C to 85°C with full power up to 50°C and Features an isolation of 3000VAC for improved reliability and system safety. Furthermore, a high MTBF of 654,700h, output short circuit protection (OSCP), output over-current protection (OCP) and an output over-voltage protection (OVP) e standard with...
