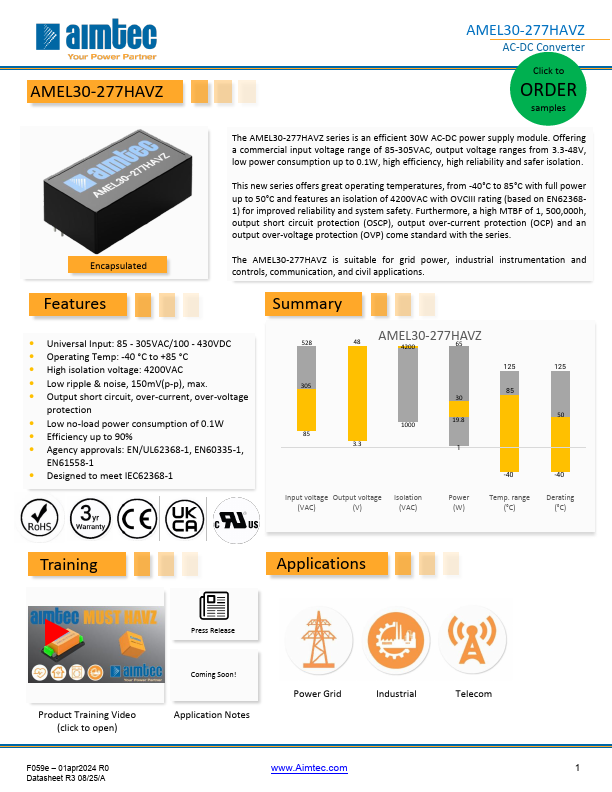

Datasheet Summary
AC-DC Converter
Click to
ORDER samples
Encapsulated
The AMEL30-277HAVZ series is an efficient 30W AC-DC power supply module. Offering a mercial input voltage range of 85-305VAC, output voltage ranges from 3.3-48V, low power consumption up to 0.1W, high efficiency, high reliability and safer isolation.
This new series offers great operating temperatures, from -40°C to 85°C with full power up to 50°C and Features an isolation of 4200VAC with OVCIII rating (based on EN623681) for improved reliability and system safety. Furthermore, a high MTBF of 1, 500,000h, output short circuit protection (OSCP), output over-current protection (OCP) and an output...
