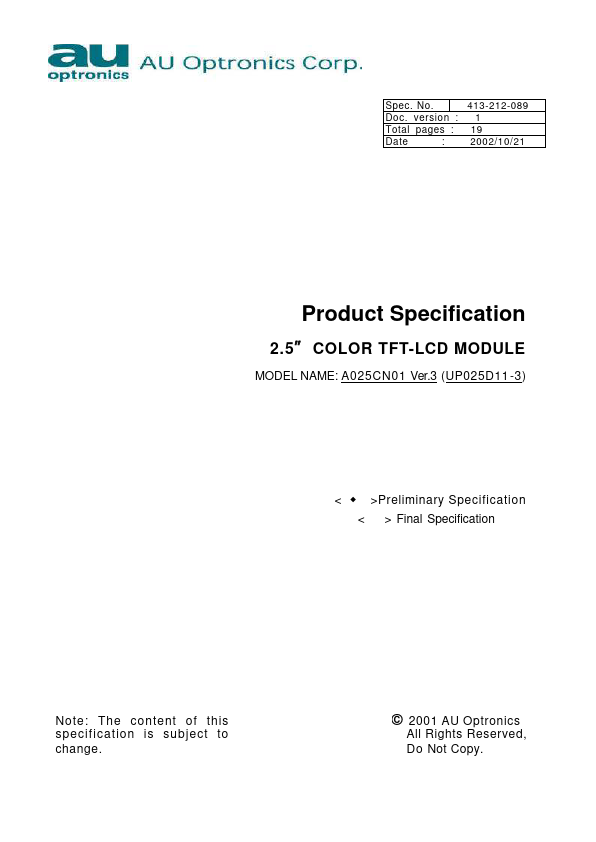

A025CN01-V3 Overview

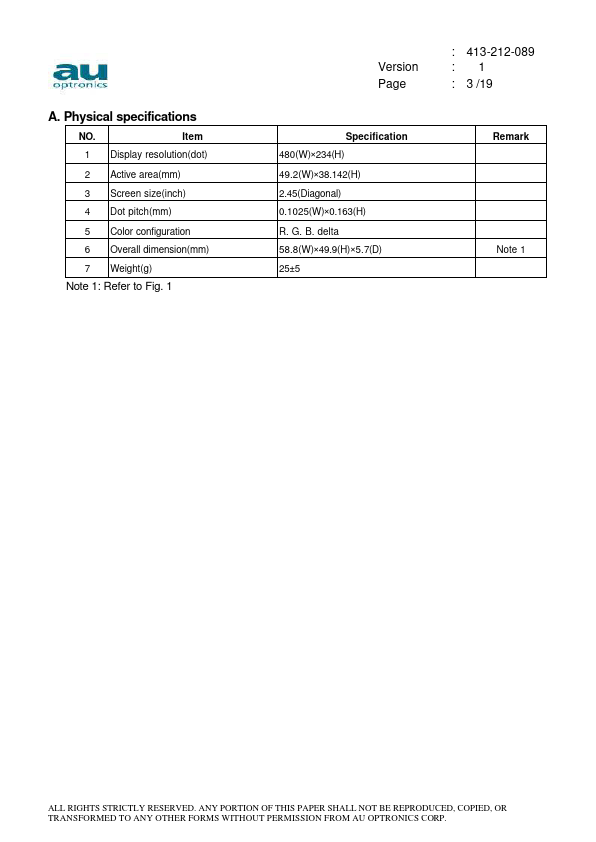

Description

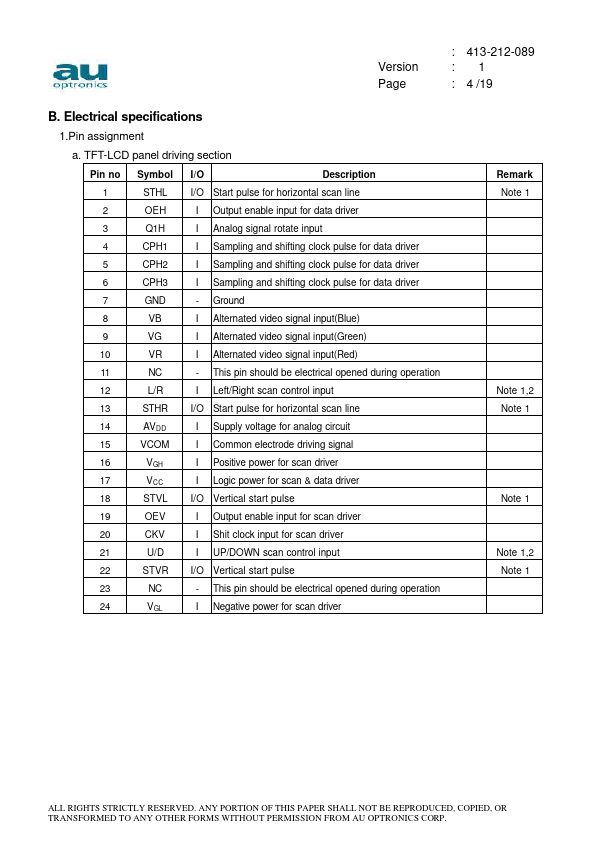

Start pulse for horizontal scan line 2 OEH I Output enable input for data driver 3 Q1H I Analog signal rotate input 4 CPH1 I Sampling and shifting clock pulse for data driver 5 CPH2 I Sampling and shifting clock pulse for data driver 6 CPH3 I Sampling and shifting clock pulse for data driver 7 GND - Ground 8 VB I Alternated video signal input(Blue) 9 VG I Alternated video signal input(Green) 10 VR I Alternated video signal input(Red) 11 NC - This pin should be electrical opened during operation 12 L/R I Left/Right scan control input 13 STHR I/O Start pulse for horizontal scan line 14 AVDD I Supply voltage for analog circuit 15 VCOM I Common electrode driving signal 16 VGH I Positive power for scan driver 17 VCC I Logic power for scan & data driver 18 STVL I/O Vertical start pulse 19 OEV I Output enable input for scan driver 20 CKV I Shit clock input for scan driver.
