A025CN02-V0 Overview

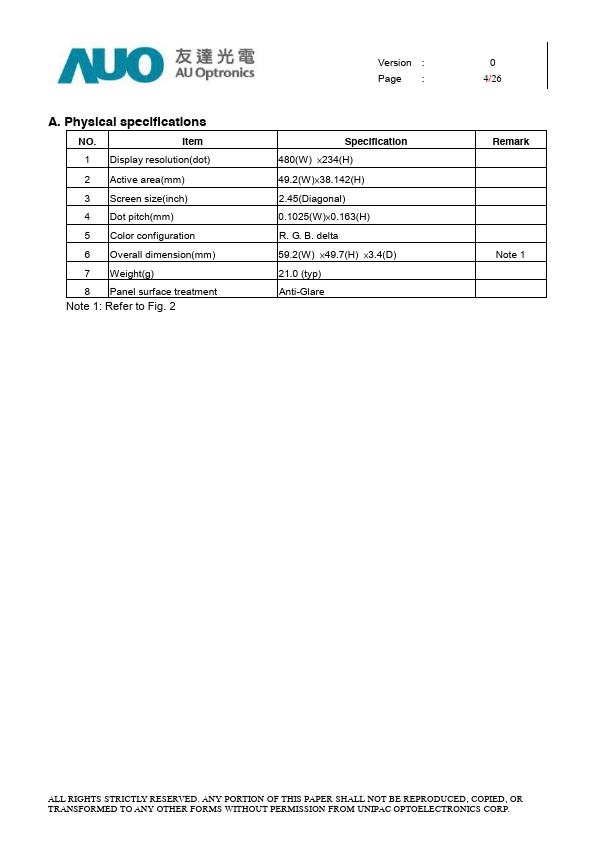

Description
2 VSCL1 I VCAC level Selection 3 VSCL0 I VCAC level Selection 4 GND P Digital ground for gate 5 VCC PI Digital Power for gate (+3.3V) Remark Note 6 Note 6 Note 6 6 VCAC PS VCOM level supply 7 VGoff_H PS Negative power supply (High) for gate 8 VCOM SO Frame polarity output for panel VCOM 9 VGoff_L PS Negative power supply (Low) for gate 10 C3M C Power setting capacitor connect pin 11 C3P C Power setting capacitor connect pin 12 VGH PI Positive power supply for gate (+15V) 13 GND - Ground Option Note 7 14 FB_G FI Main boost regulator feedback input. FB threshold is 0.6V 15 GND - Ground 16 DRV_G O Power transistor gate signal for the boost converter 17 GLED1 LED module 1 Cathode 18 VLED1 PI LED module 1 Anode Option Note 7 19 N/C 20 N/C 21 DRV_S O Power transistor gate signal for the boost converter 22 FB_S FI Main boost regulator feedback input.
