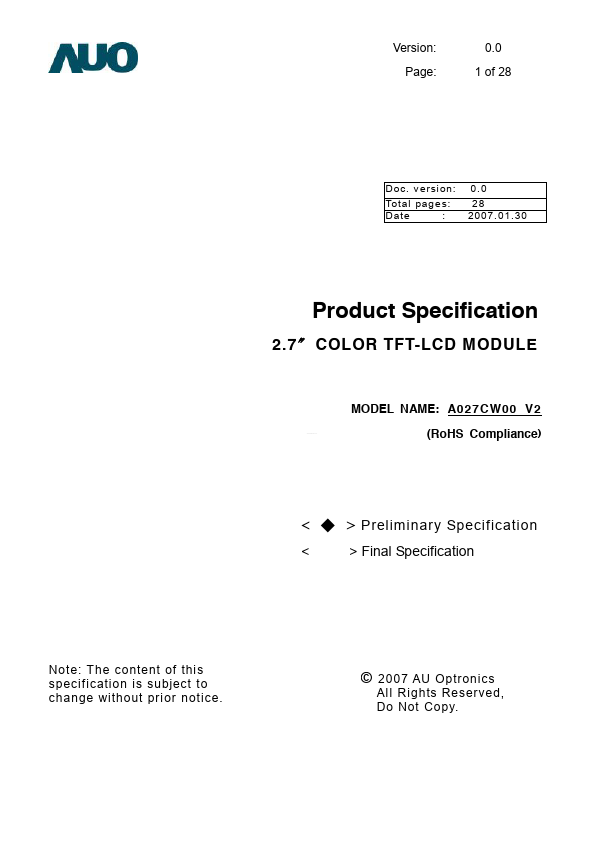

A027CW00-V2 Overview

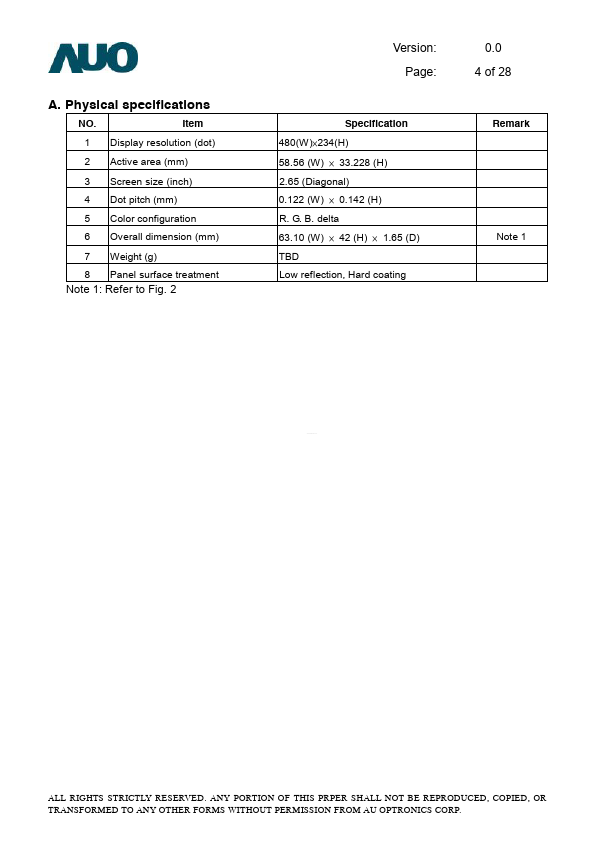

Description

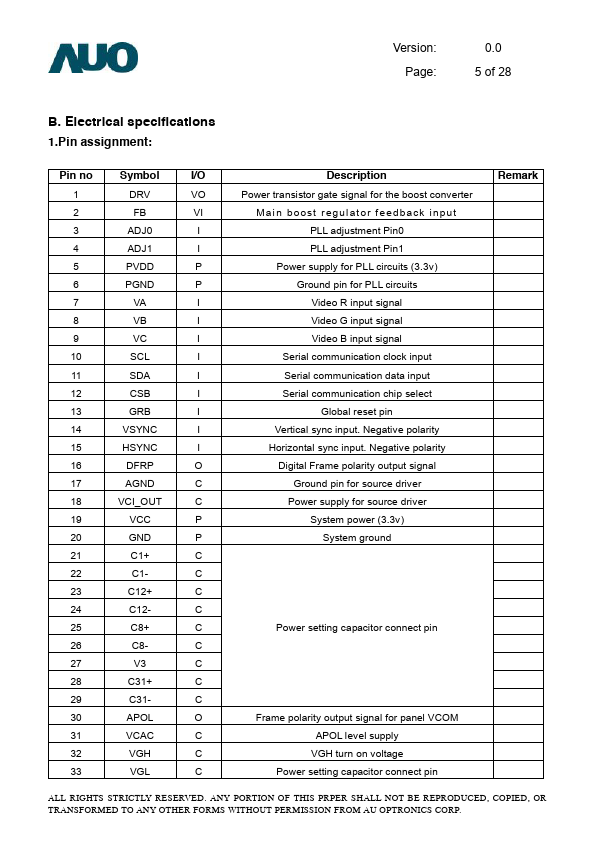

Power transistor gate signal for the boost converter Main boost regulator feedback input PLL adjustment Pin0 PLL adjustment Pin1 Power supply for PLL circuits (3.3v) Ground pin for PLL circuits Video R input signal Video G input signal Video B input signal Serial communication clock input Serial communication data input Serial communication chip select Global reset pin Vertical sync input. Negative polarity Horiz.
