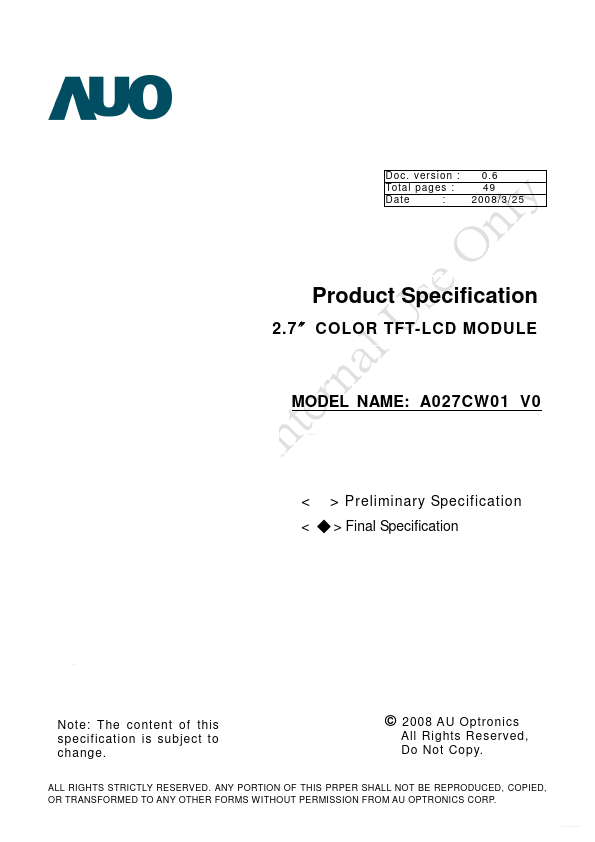

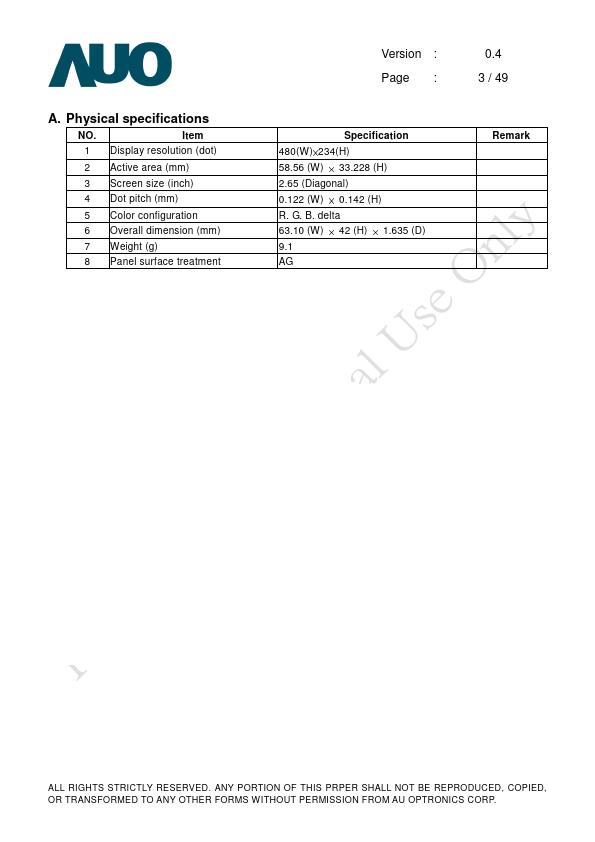

A027CW01-V0 Overview
Description
Common electrode driving voltage 2 NC -- NC 3 VGL PO Negative low power supply for gate driver output: -12.5V 4 C4P C Pins to connect capacitance for power circuitry 5 C4M C Pins to connect capacitance for power circuitry 6 VGH PO Positive power supply for gate driver output: +12.5V 7 FRP O Frame polarity output for VCOM 8 VCAC C Define the amplitude of the VCOM swing 9 Vint3 P Intermediate voltage for charge Pump 10 C3P C Pins to connect capacitance for power circuitry 11 C3M C Pins to connect capacitance for power circuitry 12 Vint2 P Intermediate voltage for charge Pump 13 C2P C Pins to connect capacitance for power circuitry 14 C2M C Pins to connect capacitance.
