Datasheet Summary
Product Specification
B121EW10 V0
.tw ( V ) Preliminary Specifications
( ) Final Specifications
Module Model Name
12.1” WXGA Color TFT-LCD B121EW10 V0 (97.12B10.000/001)
. Customer
Date
Approved by
Date lcdIvy Lee
2009/2/25 s Checked & .y Approved by
Prepared by w Emily Chen
2009/2/25 wNote: This Specification is subject to change without wnotice.
NBBU Marketing Division / AU Optronics corporation document version 0.1
Product Specification
B121EW10 V0

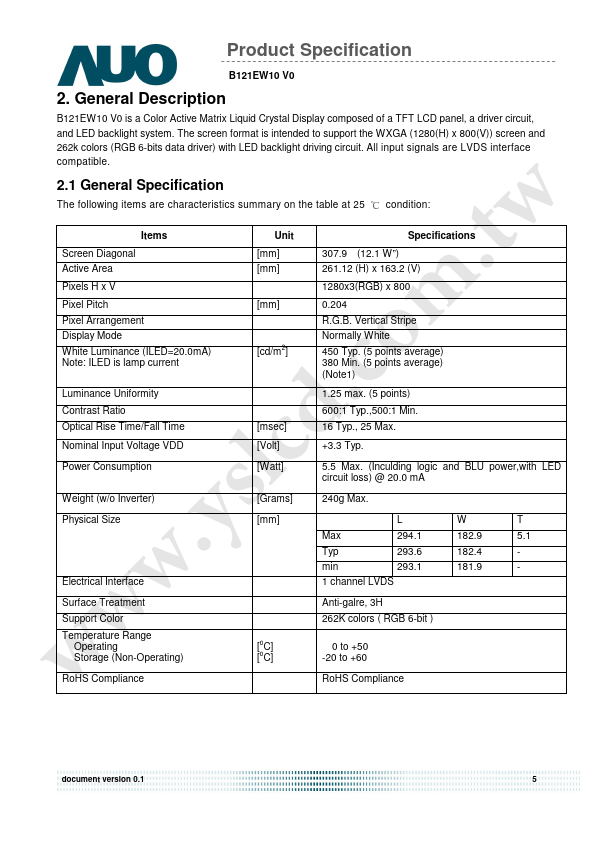

2. General Description
B121EW10 V0 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the WXGA (1280(H) x...
