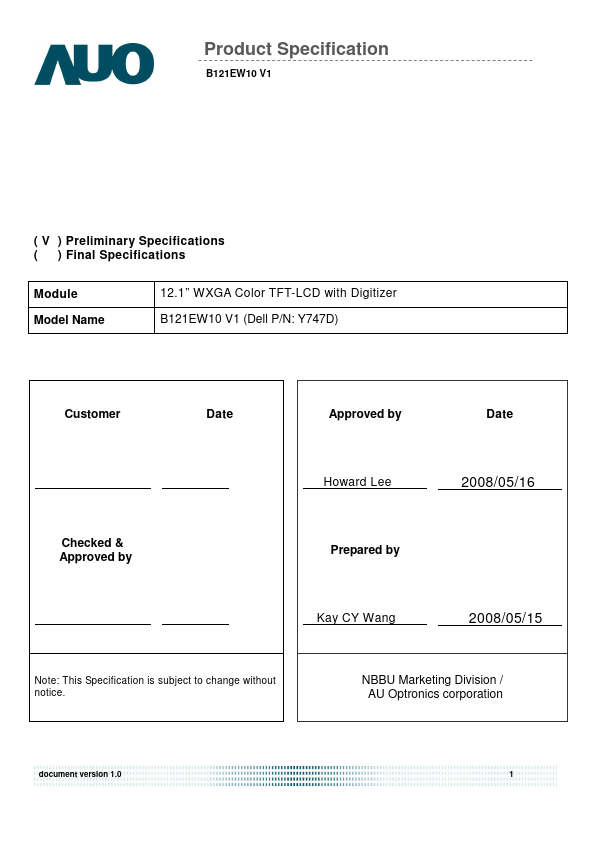

Datasheet Summary
Product Specification
B121EW10 V1
( V ) Preliminary Specifications ( ) Final Specifications
Module Model Name
12.1” WXGA Color TFT-LCD with Digitizer B121EW10 V1 (Dell P/N: Y747D)
Customer
Date
Approved by
Date
Howard Lee
2008/05/16
Checked & Approved by
Prepared by
Kay CY Wang
2008/05/15
Note: This Specification is subject to change without notice.
NBBU Marketing Division / AU Optronics corporation document version 1.0
Product Specification
B121EW10 V1

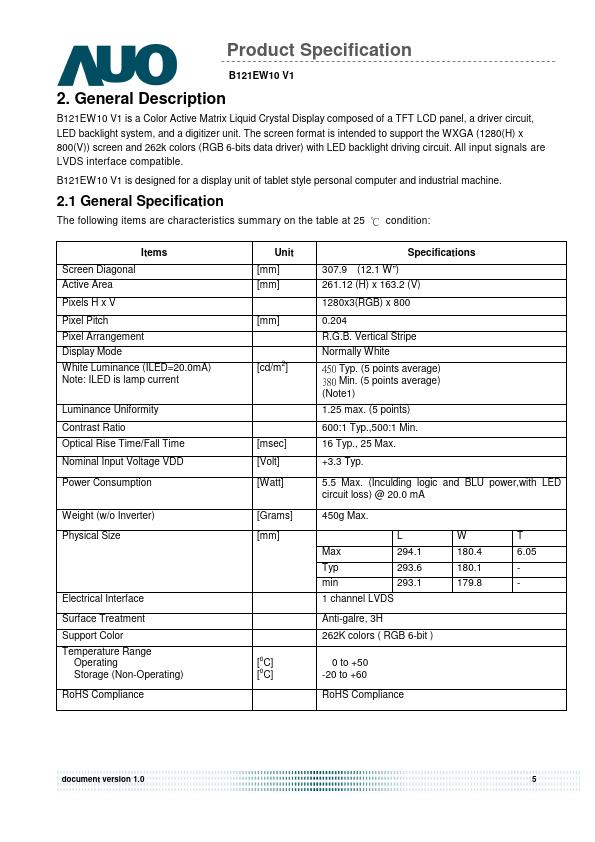

2. General Description
B121EW10 V1 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, LED backlight system, and a digitizer unit. The screen format is intended to support the...
