B141EW04-V3 - TFT LCD

Download the B141EW04-V3 datasheet PDF (B141EW04_V3 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for tft lcd.

Description

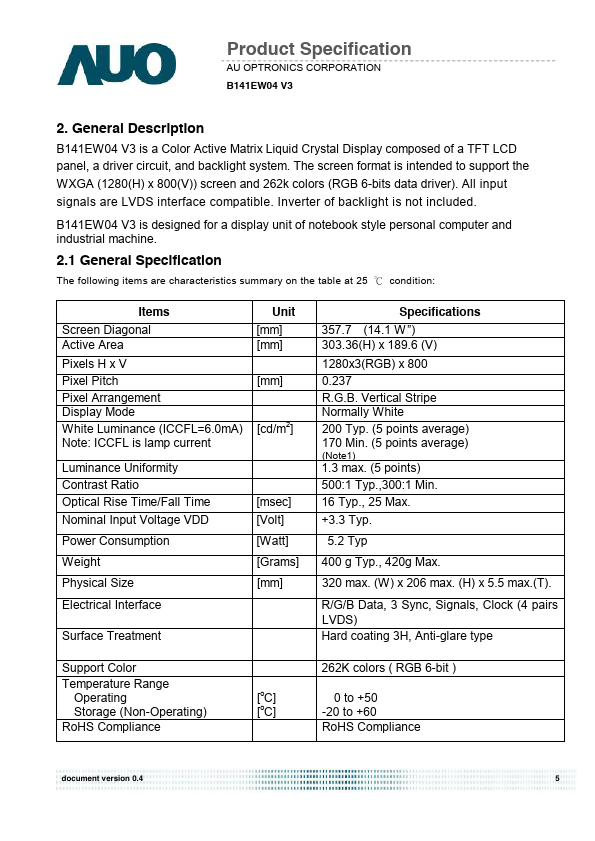

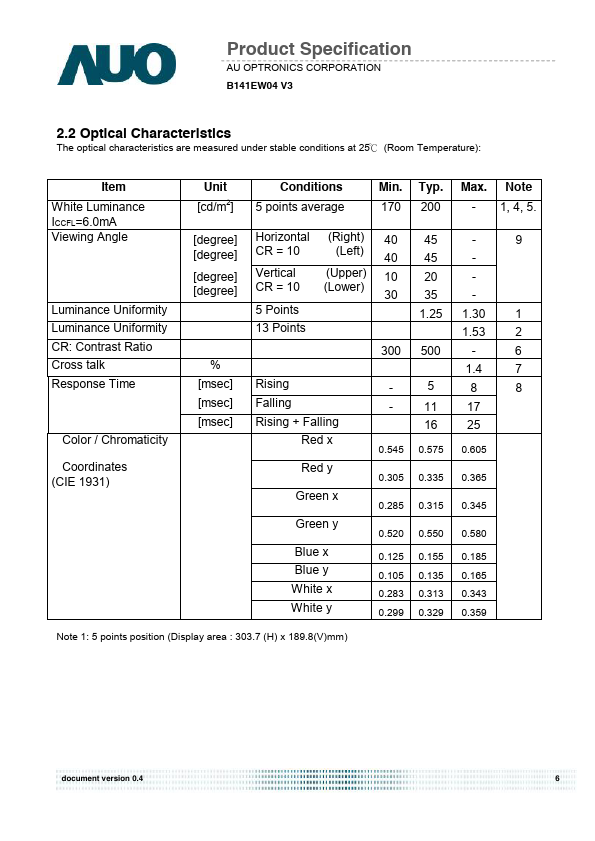

5 2.1 General Specification 5 2.2 Optical Characteristics 6 3.

Functional Block Diagram 11 4.

Absolute Maximum Ratings 12 4.1 Absolute Ratings of TFT LCD Module12 4.2 Absolute Ratings of Backlight Unit 12 4.3 Absolute Ratings of Environment 12 5.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B141EW04_V3_AUO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B141EW04-V3
Manufacturer AUO
File Size 445.01 KB
Description TFT LCD
Datasheet download datasheet B141EW04-V3 Datasheet

📁 Similar Datasheet

  • B1411 - SILICON PNP TRIPLE DIFFUSED TYPE TRANSISTOR (Toshiba)
  • B1412 - 2SB1412 (Rohm)
  • B1413N - 5-Dot Red/Green LED Level Meter (Sanyo)
  • B1416 - 2SB1416 (Panasonic)
  • B1417 - 2SB1417 (Panasonic Semiconductor)
  • B141PN01 - COLOR TFT-LCD MODULE (UNIPAC OPTOELECTRONICS)
  • B140 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B140-E3 - Surface Mount Schottky Barrier Rectifier (Vishay)
  • B140-M3 - Surface Mount Schottky Barrier Rectifier (Vishay)
  • B1401RH - 14-Bit 20MSPS Analog-to-Digital Converter (Beijing Microelectronics)
Other Datasheets by AUO

Full PDF Text Transcription

Click to expand full text

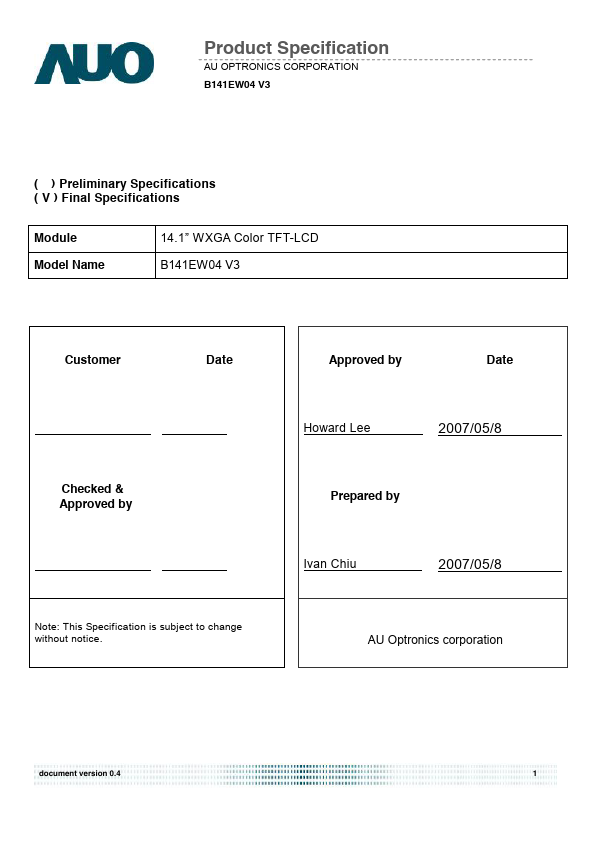

w w w . D a t a S h e e t 4 U . n e t Product Specification AU OPTRONICS CORPORATION B141EW04 V3 ( ) Preliminary Specifications ( V ) Final Specifications Module Model Name 14.1” WXGA Color TFT-LCD B141EW04 V3 Customer Date Approved by Date Howard Lee 2007/05/8 Checked & Approved by Prepared by Ivan Chiu 2007/05/8 Note: This Specification is subject to change without notice. NBBU Marketing Division / AU Optronics corporation document version 0.4 1 www.DataSheet4U.net Product Specification AU OPTRONICS CORPORATION B141EW04 V3 Contents 1. Handling Precautions .............................................................................................................. 4 2. General Description ...............................................................
