B141EW04-V5 - TFT LCD

Download the B141EW04-V5 datasheet PDF (B141EW04_V5 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for tft lcd.

Description

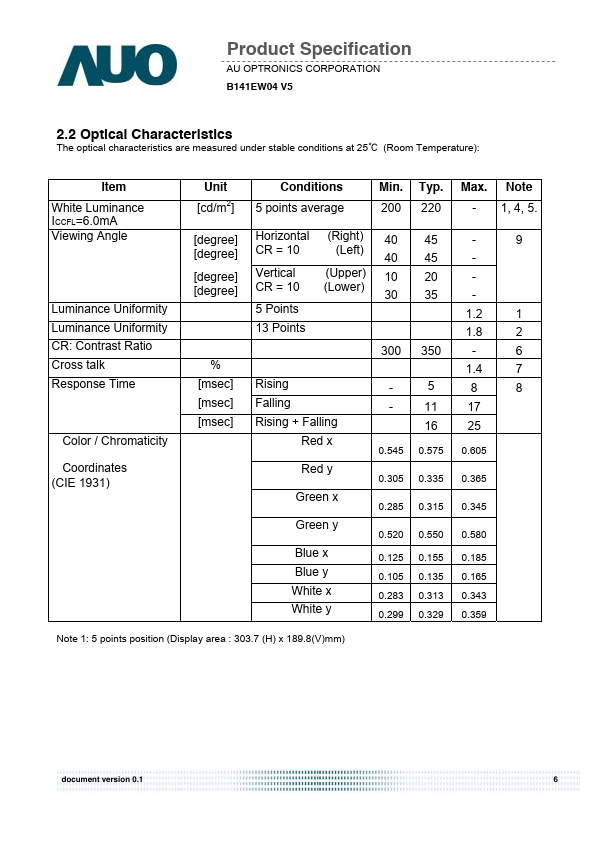

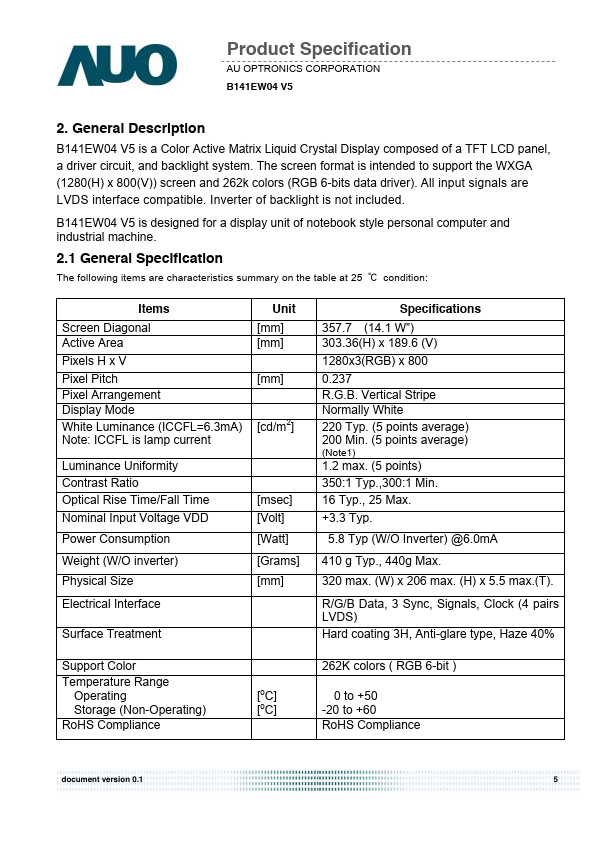

5 2.1 General Specification 5 2.2 Optical Characteristics 6 3.

Functional Block Diagram 11 4.

Absolute Maximum Ratings 12 4.1 Absolute Ratings of TFT LCD Module12 4.2 Absolute Ratings of Backlight Unit 12 4.3 Absolute Ratings of Environment 12 5.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B141EW04_V5_AUO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B141EW04-V5
Manufacturer AUO
File Size 407.68 KB
Description TFT LCD
Datasheet download datasheet B141EW04-V5 Datasheet
