Datasheet Summary
Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications ( ) Final Specifications
Module Model Name Note ( )
15.6” (15.55) FHD 16:9 Color TFT-LCD with LED Backlight design B156HTN03.8 (H/W:1A) LED Backlight with driving circuit design
Customer
Date
Approved by
Date
Checked & Approved by
Date
Note: This Specification is subject to change without notice.
Prepared by
Date
Brenda Lu
11/12/2014
NBBU Marketing Division / AU Optronics corporation
B156HTN03.8 Document Version : 0.2
1 of 35
Product Specification
AU OPTRONICS CORPORATION

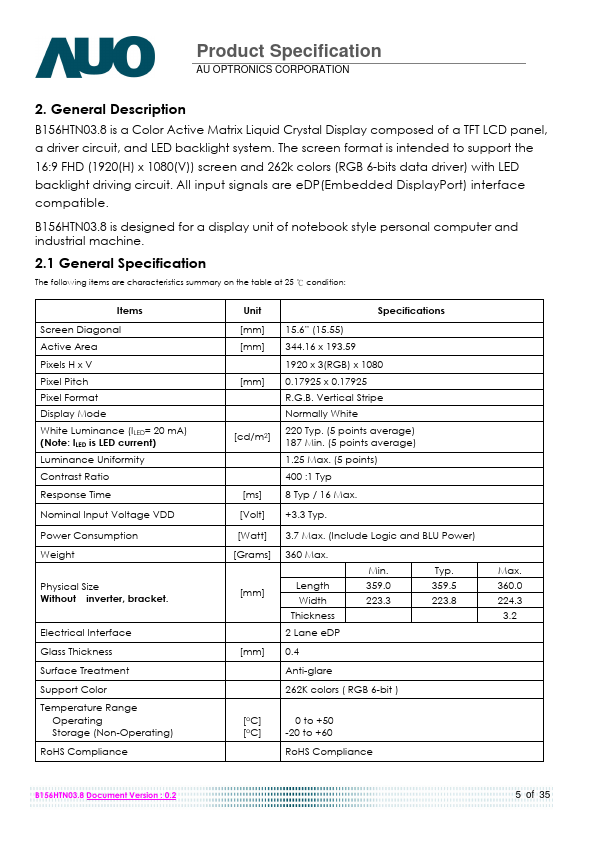

2. General Description
B156HTN03.8 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver...
