G190EAN01.0
G190EAN01.0 is SXGA Color TFT-LCD manufactured by AU Optronics.
Description

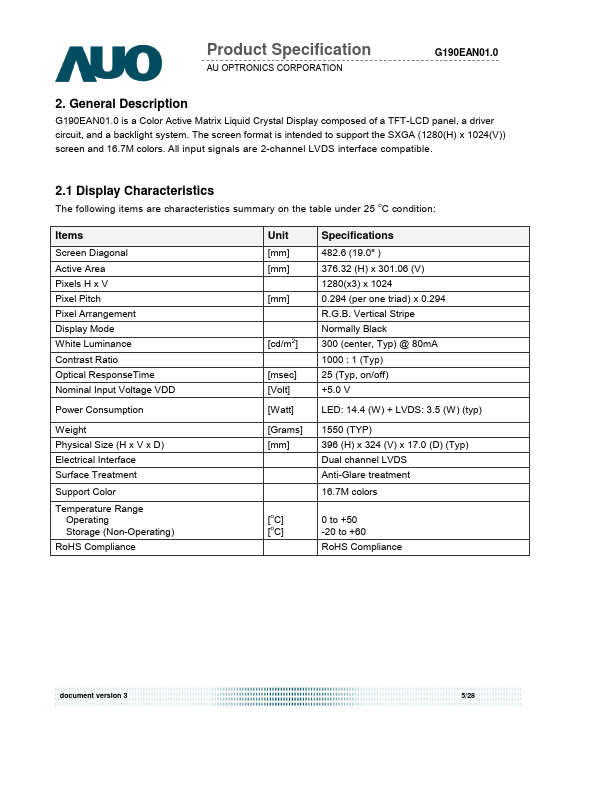

G190EAN01.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD panel, a driver circuit, and a backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and 16.7M colors. All input signals are 2-channel LVDS interface patible.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 o C condition:
Items
Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode White Luminance Contrast Ratio Optical Response Time Nominal Input Voltage VDD
Power Consumption
Weight Physical Size (H x V x D) Electrical Interface Surface Treatment Support Color Temperature Range
Operating Storage (Non-Operating) Ro HS pliance
Unit [mm] [mm]
[mm]
[cd/m2]
[msec] [Volt] [Watt] [Grams] [mm]
Specifications 482.6 (19.0" ) 376.32 (H) x 301.06 (V) 1280(x3) x 1024 0.294 (per one triad) x 0.294 R.G.B. Vertical Stripe Normally Black 300 (center, Typ) @ 80m A 1000 : 1 (Typ) 25 (Typ, on/off) +5.0 V
LED: 14.4 (W) + LVDS: 3.5 (W) (typ)
1550 (TYP) 396 (H) x 324 (V) x 17.0 (D) (Typ) Dual channel LVDS Anti-Glare treatment 16.7M colors
[o C]
0 to +50
[o C]
-20 to +60
Ro HS pliance document version 3
5/28
Product Specification
AU OPTRONICS CORPORATION

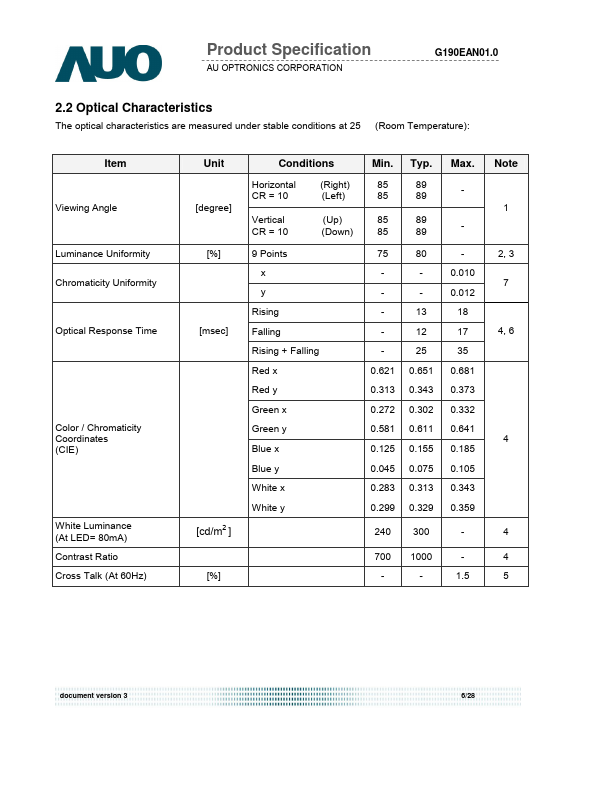

2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25Ċ (Room Temperature):
Item Viewing Angle
Luminance Uniformity Chromaticity Uniformity
Optical Response Time
Color / Chromaticity Coordinates (CIE)
White Luminance (At LED= 80m A) Contrast Ratio Cross Talk (At 60Hz)
Unit [degree]
[%] [msec]
[cd/m2 ] [%]
Conditions
Horizontal CR = 10
(Right) (Left)
Min.
85...
