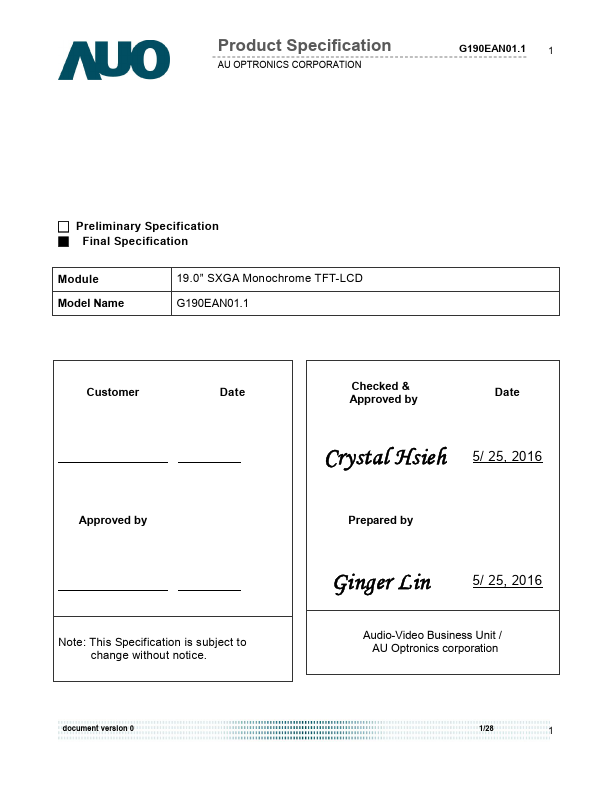

G190EAN01.1

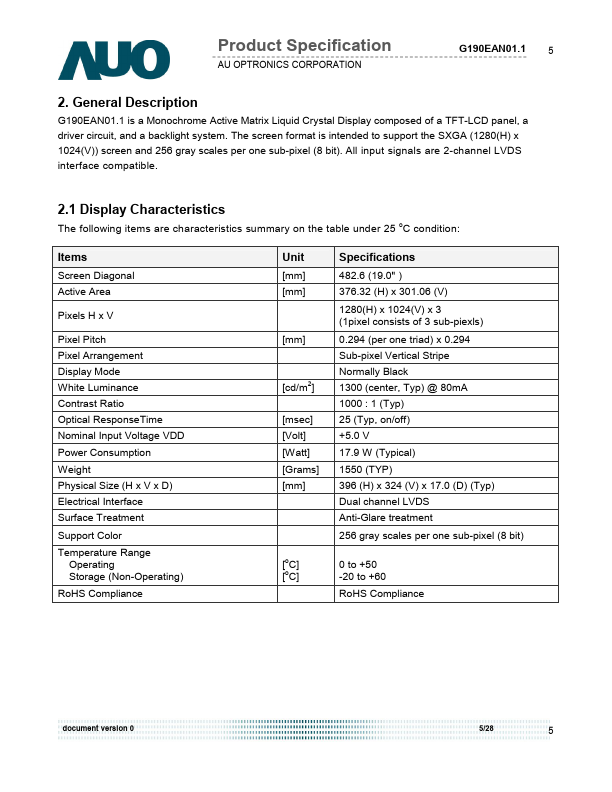

G190EAN01.1 is SXGA Monochrome TFT-LCD manufactured by AU Optronics.
Description
G190EAN01.1 is a Monochrome Active Matrix Liquid Crystal Display posed of a TFT-LCD panel, a driver circuit, and a backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and 256 gray scales per one sub-pixel (8 bit). All input signals are 2-channel LVDS interface patible.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 o C condition:
Items Screen Diagonal Active Area
Pixels H x V
Pixel Pitch Pixel Arrangement Display Mode White Luminance Contrast Ratio Optical Response Time Nominal Input Voltage VDD Power Consumption Weight Physical Size (H x V x D) Electrical Interface Surface Treatment Support Color Temperature Range
Operating Storage (Non-Operating) Ro HS pliance
Unit [mm] [mm]
[mm]
[cd/m2]
[msec] [Volt] [Watt] [Grams] [mm]
Specifications
482.6 (19.0" ) 376.32 (H) x 301.06 (V) 1280(H) x 1024(V) x 3 (1pixel consists of 3 sub-piexls)
0.294 (per one triad) x 0.294 Sub-pixel Vertical Stripe Normally Black 1300 (center, Typ) @ 80m A 1000 : 1 (Typ) 25 (Typ, on/off) +5.0 V 17.9 W (Typical) 1550 (TYP) 396 (H) x 324 (V) x 17.0 (D) (Typ) Dual channel LVDS Anti-Glare treatment 256 gray scales per one sub-pixel (8 bit)
[o C]
0 to +50
[o C]
-20 to +60
Ro HS pliance document version 0
5/28
Product Specification
AU OPTRONICS CORPORATION
G190EAN01.1 6
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):
Item
Unit
Conditions
Min. Typ. Max.
Viewing Angle Luminance Uniformity Optical Response Time
[degree] [%]
[msec]
Color / Chromaticity Coordinates (CIE)
White Luminance (At LED= 80m A)
Contrast Ratio
[cd/m2 ]
- Horizontal
(Right)...
