G238HAN01.2 Overview

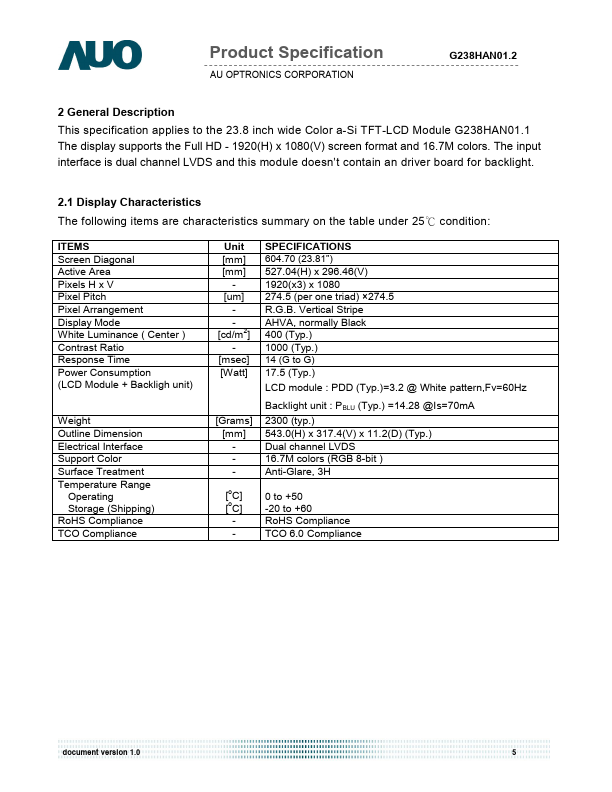

This specification applies to the 23.8 inch wide Color a-Si TFT-LCD Module G238HAN01.1 The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors. The input interface is dual channel LVDS and this module doesn’t contain an driver board for backlight. 2.1 Display Characteristics The following items are characteristics summary on the table under 25℃ condition:.
