G238HAN01.1 - Color TFT-LCD

Description

5 2.1 Display Characteristics 5 2.2 Absolute Maximum Rating of Environment 6 2.3 Optical Characteristics 7 3 TFT-LCD Module 12 3.1 Block Diagram 12 3.2 Interface Connection 13 3.2.1 Connector Type 13 3.2.2 Connector Pin Assignment 13 3.3 Electrical Characteristics 15 3.3.1 Absolute Maximum Rati

📥 Download Datasheet

Datasheet preview – G238HAN01.1

Datasheet Details

Part number G238HAN01.1
Manufacturer AUO
File Size 680.96 KB
Description Color TFT-LCD
Datasheet download datasheet G238HAN01.1 Datasheet
Additional preview pages of the G238HAN01.1 datasheet.

📁 Similar Datasheet

  • G238HCJ-L01 - TFT LCD (INNOLUX)
  • G238HCJ-L02 - TFT LCD (INNOLUX)
  • G2300 - CMOS Positive Voltage Regulator (GTM)
  • G2301 - P-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
  • G2302 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
  • G2303 - P-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
  • G2304 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
  • G2304A - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
  • G2305 - P-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
  • G2305A - P-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
Other Datasheets by AUO

Full PDF Text Transcription

Click to expand full text

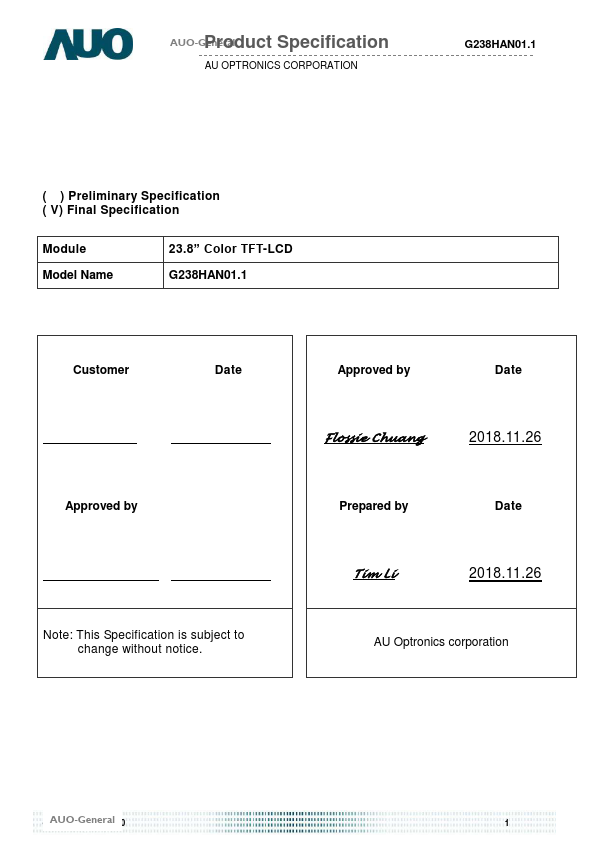

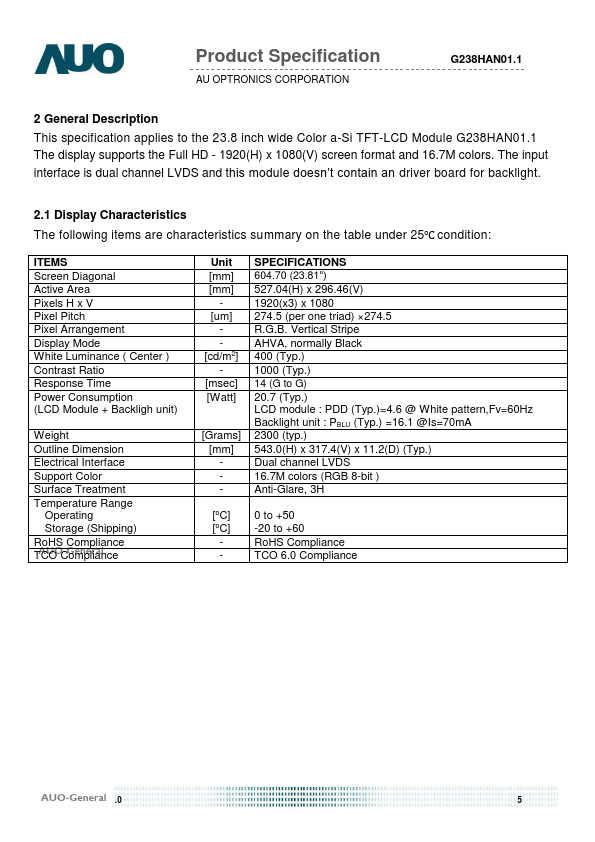

AUO-GPenreroalduct Specification AU OPTRONICS CORPORATION G238HAN01.1 ( ) Preliminary Specification ( V) Final Specification Module Model Name 23.8” Color TFT-LCD G238HAN01.1 Customer Date Approved by Note: This Specification is subject to change without notice. Approved by Date Flossie Chuang 2018.11.26 Prepared by Date Tim Li 2018.11.26 AU Optronics corporation doAcuUmOen-Gt veenrseiornal1.0 1 AUO-GPenreroalduct Specification AU OPTRONICS CORPORATION Contents G238HAN01.1 1 Handling Precautions................................................................4 2 General Description ..................................................................5 2.1 Display Characteristics................................................................................................
