AP85T03GH datasheet by Advanced Power Electronics Corp.
| Part number | AP85T03GH |
|---|---|
| Datasheet | AP85T03GH_AdvancedPowerElectronics.pdf |
| File Size | 72.92 KB |
| Manufacturer | Advanced Power Electronics Corp |
| Description | N-CHANNEL ENHANCEMENT MODE POWER MOSFET |
|
|

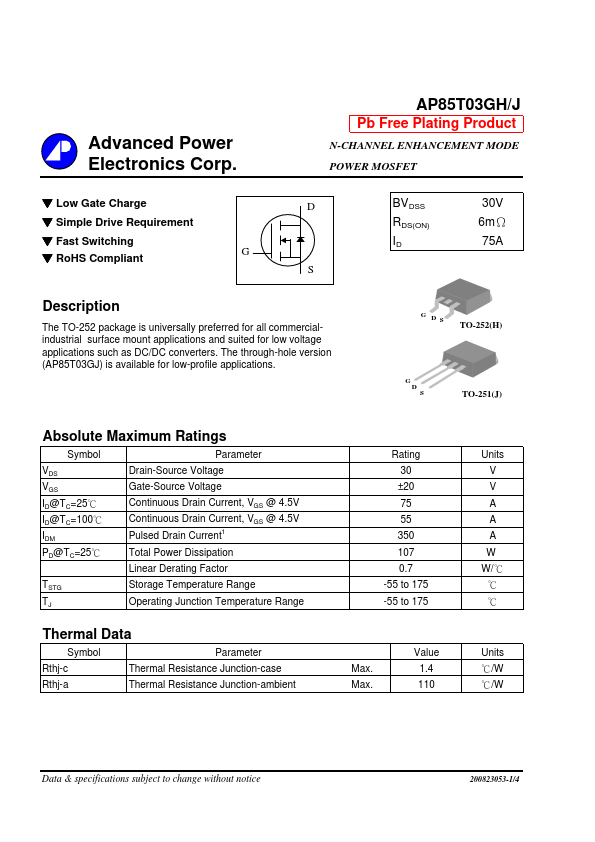

The TO-252 package is universally preferred for all mercialindustrial surface mount applications and suited for low voltage applications such as DC/DC converters. The through-hole version (AP85T03GJ) is available for low-profile applications. Value 1.4 110 Units ℃/W ℃/W Data & specifications subject to change without notice 200823053-1/4 AP85T03GH/J @Tj=25oC(unless otherwise specified) Symbol Parameter Test...
