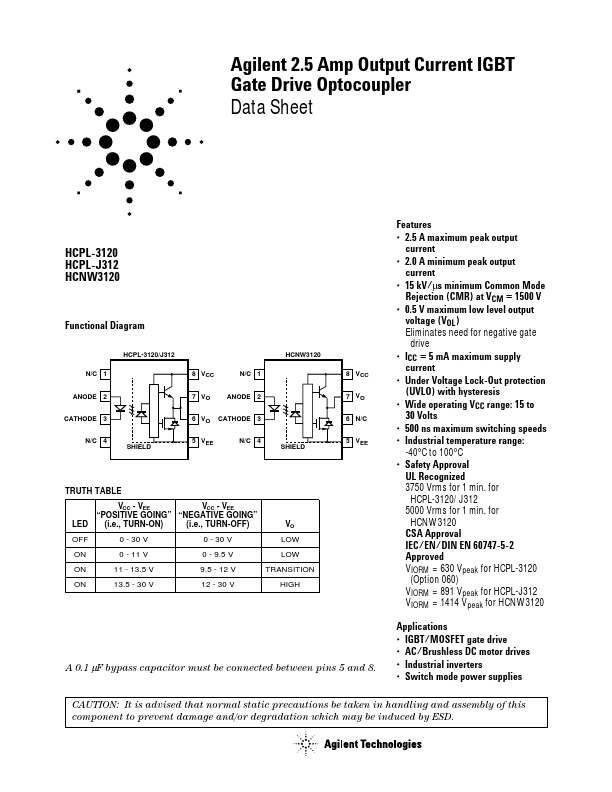

Agilent Technologies HCNW3120
the HCNW3120 contain an AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.| Part No. | HCNW3120 |
|---|---|
| Datasheet | HCNW3120 Download |
| Manufacturer |  Agilent Technologies |
| Description | IGBT Gate Drive Optocoupler |
| Buy | Stock & Price |
FEATURES
● 2.5 A maximum peak output current● 2.0 A minimum peak output current
● 15 kV/µs minimum Common Mode Rejection (CMR) at VCM = 1500 V
● 0.5 V maximum low level output voltage (VOL) Eliminates need for negative gate drive
● ICC = 5 mA maximum supply current
● Under Voltage Lock-Out protection (UVLO) with hysteresis
● Wide operating VCC range: 15 to 30 Volts
● 500 ns maximum switching speeds
● Industrial temperature range: -40°C to 100°C
● Safety Approval UL Recognized 3750 Vrms for 1 min. for HCPL-3120/J312 5000 Vrms for 1 min. for HCNW3120 CSA Approval IEC/EN/DIN EN 60747-5-2 Approved VIORM = 630 Vpeak for HCPL-3120 (Option 060) VIORM = 891 Vpeak for HCPL-J312 VIORM = 1414 Vpeak for HCNW3120
APPLICATIONS
● IGBT/MOSFET gate drive● AC/Brushless DC motor drives
● Industrial inverters
● Switch mode power supplies CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD.
