1N4448WS Datasheet | AiT Semiconductor

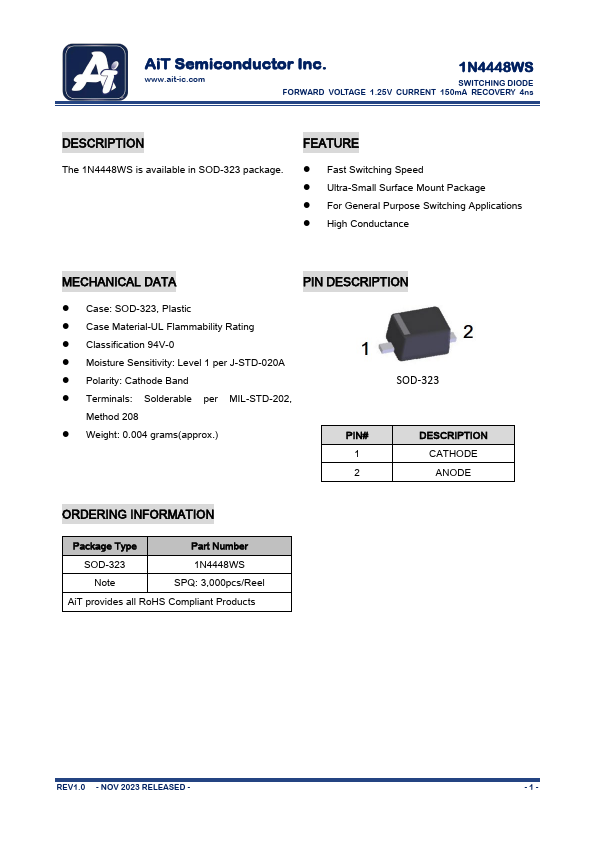

DESCRIPTION FEATURE The 1N4448WS is available in SOD-323 package. - Fast Switching Speed - Ultra-Small Surface Mount Package - For General Purpose Switching Applications - High Conductance MECHANICAL DATA PIN DESCRIPTION - Case: SOD-323, Plastic - Case Material-UL Flammability Rating - Classification 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020A - Polarity: Cathode Band - Terminals: Solderable per MIL-STD-202, Method 208 - Weight: 0.004 grams(approx.) SOD-323 PIN# 1 2 DESCRIPTION CATHODE ANODE ORDERING INFORMATION Package Type Part Number SOD-323 Note SPQ: 3,000pcs/Reel Ai T provides all Ro HS pliant Products REV1.0 - NOV 2023 RELEASED - -1- Ai T Semiconductor Inc. .ait-ic. SWITCHING DIODE FORWARD VOLTAGE 1.25V CURRENT 150m A RECOVERY 4ns ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified VRM, Non-Repetitive Peak Reverse Voltage 100V VRRM, Peak Repetitive Reverse...
