2SD1624 - SILICON NPN HIGH CURRENT SWITCHING TRANSISTOR

AiT Semiconductor

General Description

The 2SD1624-R, 2SD1624-S,2SD1624-T and 2SD1624-U are available in the SOT-89 package.

2SD1624 silicon npn high current switching transistor by AiT Semiconductor - Datasheet Preview

Datasheet Details

Part number	2SD1624
Manufacturer	AiT Semiconductor
File Size	734.01 KB
Description	SILICON NPN HIGH CURRENT SWITCHING TRANSISTOR
Datasheet	2SD1624 Datasheet

Full PDF Text Transcription for 2SD1624 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SD1624. For precise diagrams, and layout, please refer to the original PDF.

AiT Semiconductor Inc. 2SD1624 www.ait-ic.com TRANSISTOR SILICON NPN HIGH CURRENT SWITCHING TRANSISTOR DESCRIPTION The 2SD1624-R, 2SD1624-S,2SD1624-T and 2SD1624-U are av...

View more extracted text

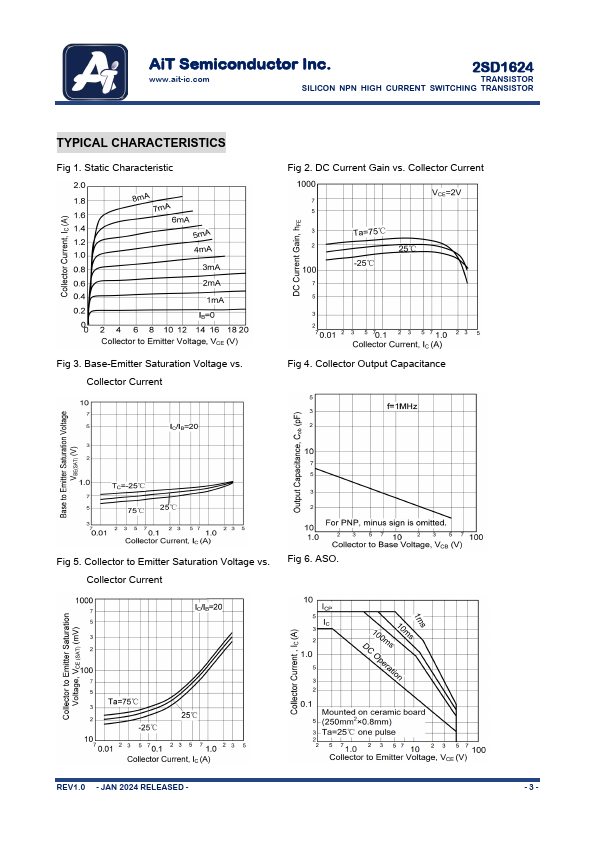

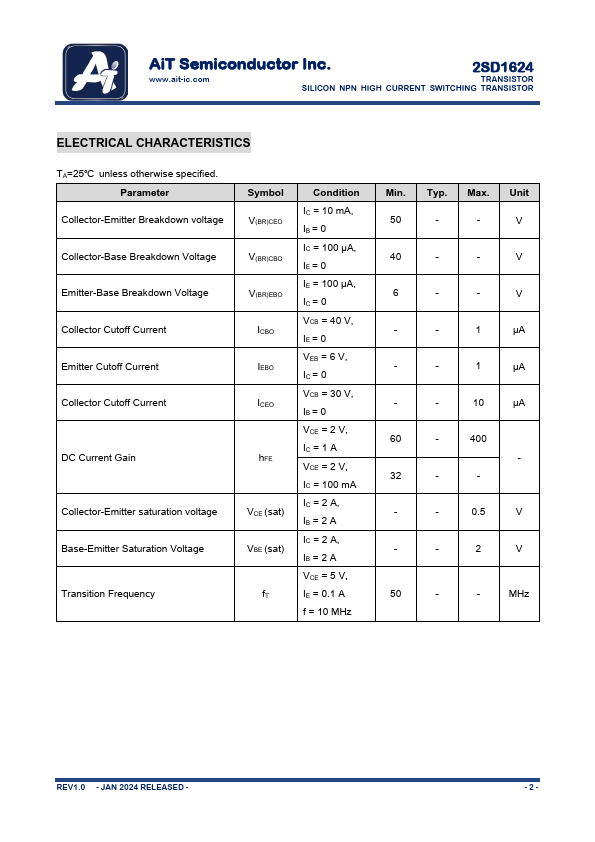

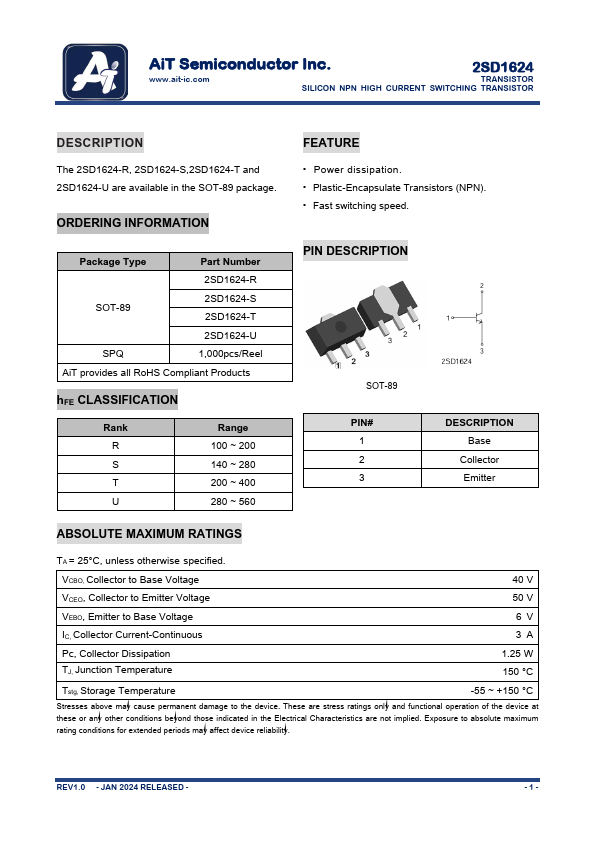

OR DESCRIPTION The 2SD1624-R, 2SD1624-S,2SD1624-T and 2SD1624-U are available in the SOT-89 package. ORDERING INFORMATION Package Type Part Number 2SD1624-R SOT-89 2SD1624-S 2SD1624-T 2SD1624-U SPQ 1,000pcs/Reel AiT provides all RoHS Compliant Products hFE CLASSIFICATION Rank R S T U Range 100 ~ 200 140 ~ 280 200 ~ 400 280 ~ 560 FEATURE • Power dissipation. • Plastic-Encapsulate Transistors (NPN). • Fast switching speed. PIN DESCRIPTION SOT-89 PIN# 1 2 3 DESCRIPTION Base Collector Emitter ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified.
