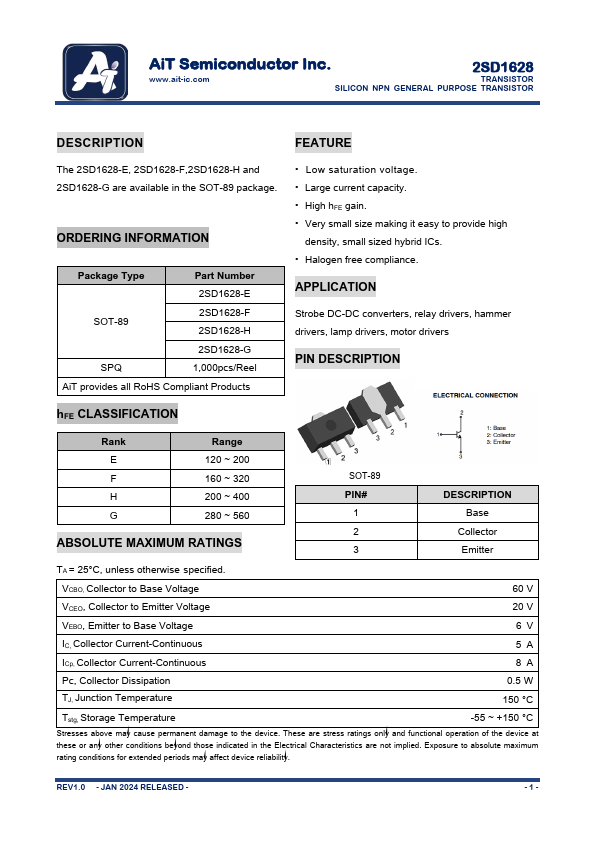

2SD1628
DESCRIPTION
FEATURE
The 2SD1628-E, 2SD1628-F,2SD1628-H and 2SD1628-G are available in the SOT-89 package.
ORDERING INFORMATION
Package Type
Part Number
2SD1628-E
SOT-89
2SD1628-F 2SD1628-H
2SD1628-G
1,000pcs/Reel
Ai T provides all Ro HS pliant Products
- Low saturation voltage.
- Large current capacity.
- High h FE gain.
- Very small size making it easy to provide high density, small sized hybrid ICs.
- Halogen free pliance.
APPLICATION
Strobe DC-DC converters, relay drivers, hammer drivers, lamp drivers, motor drivers
PIN DESCRIPTION h FE CLASSIFICATION
Rank E F H G
Range 120 ~ 200 160 ~ 320 200 ~ 400 280 ~ 560
ABSOLUTE MAXIMUM RATINGS
SOT-89
PIN# 1 2 3
DESCRIPTION
Base
Collector Emitter
TA = 25°C, unless otherwise specified.
VCBO, Collector to Base Voltage
60 V
VCEO, Collector to Emitter Voltage
20 V
VEBO, Emitter to Base Voltage
6V
IC, Collector Current-Continuous
5A
ICp, Collector Current-Continuous
8A...
