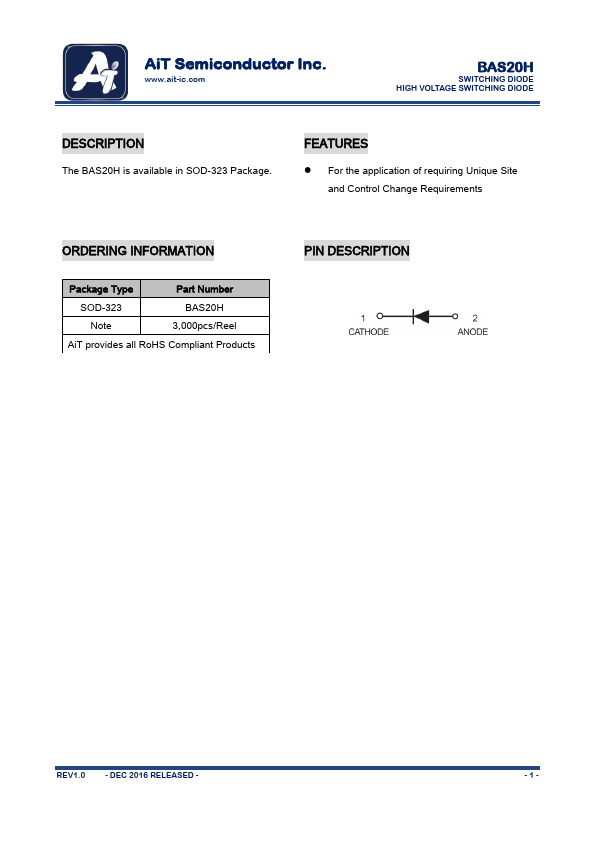

BAS20H
DESCRIPTION
The BAS20H is available in SOD-323 Package.
FEATURES
- For the application of requiring Unique Site and Control Change Requirements
ORDERING INFORMATION
Package Type
Part Number
SOD-323
Note
3,000pcs/Reel
Ai T provides all Ro HS pliant Products
PIN DESCRIPTION
REV1.0
- DEC 2016 RELEASED
- -1-
Ai T Semiconductor Inc.
.ait-ic.
SWITCHING DIODE HIGH VOLTAGE SWITCHING DIODE

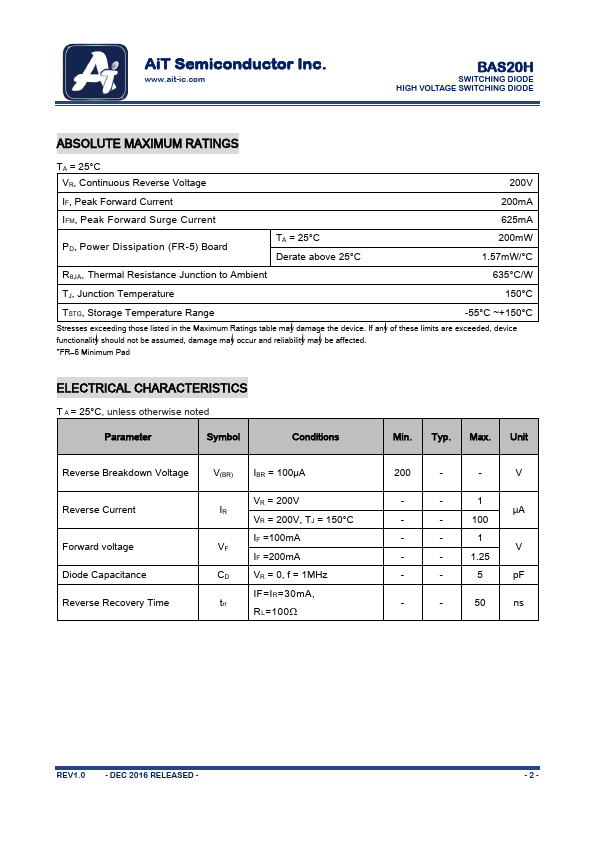

ABSOLUTE MAXIMUM RATINGS
TA = 25°C VR, Continuous Reverse Voltage
200V
IF, Peak Forward Current
200m A
IFM, Peak Forward Surge Current
625m A
PD, Power Dissipation (FR-5) Board
TA = 25°C Derate above 25°C
200m W 1.57m W/°C
RθJA, Thermal Resistance Junction to Ambient
635°C/W
TJ, Junction Temperature
150°C
TSTG, Storage Temperature Range
-55°C ~+150°C
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
- FR- 5...
