| Part number | BCX56 |
|---|---|
| Datasheet | BCX56-AiTSemiconductor.pdf |
| File Size | 522.62 KB |
| Manufacturer | AiT Semiconductor |
| Description | 1A 80V NPN TRANSISTORS |
|
|

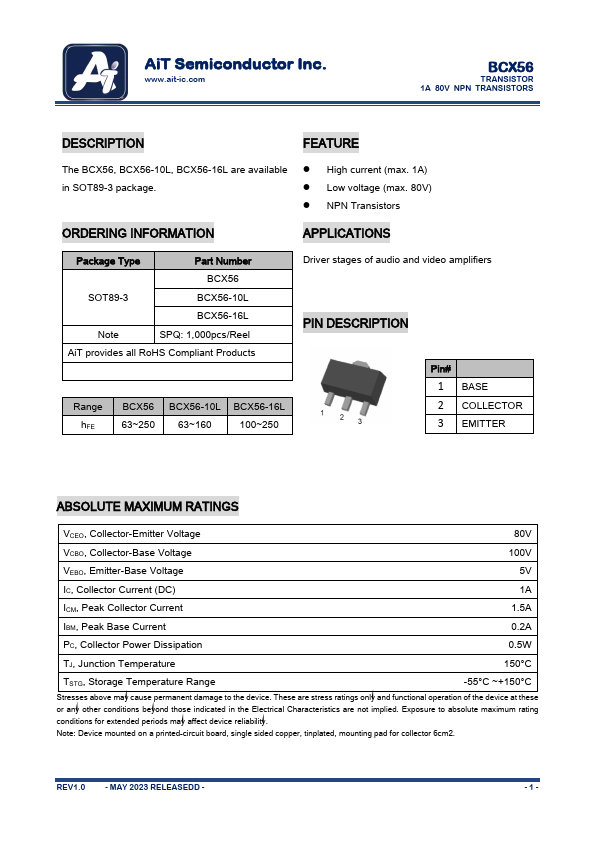

FEATURE The BCX56, BCX56-10L, BCX56-16L are available High current (max. 80V) NPN Transistors ORDERING INFORMATION APPLICATIONS Package Type Part Number BCX56 SOT89-3 BCX56-10L BCX56-16L Note SPQ: These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the are not implied.
