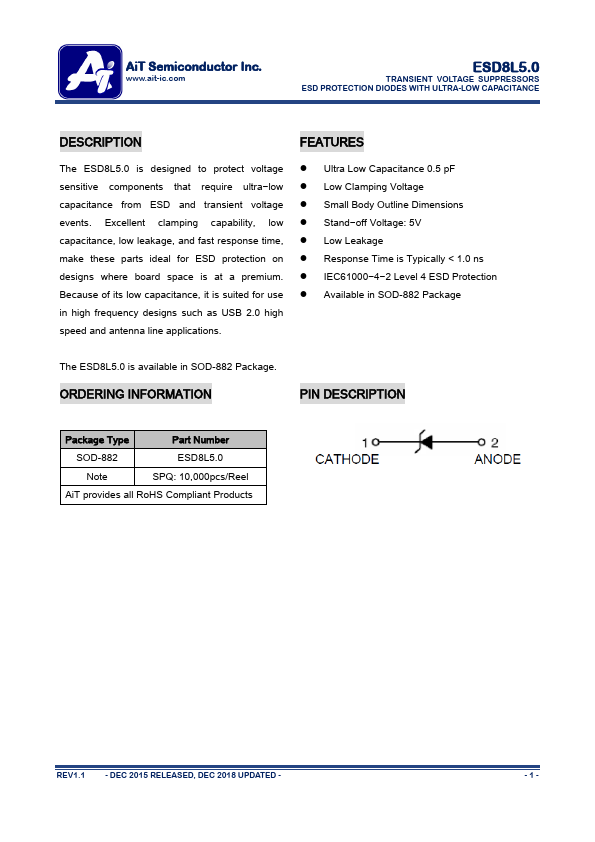

ESD8L5.0 Description
FEATURES The ESD8L5.0 is designed to protect voltage Ultra Low Capacitance 0.5 pF sensitive ponents that require ultra−low Low Clamping Voltage capacitance from ESD and transient voltage Small Body Outline Dimensions events. Excellent clamping capability, low Stand−off Voltage: 5V capacitance, low leakage, and fast response time, Low Leakage make these parts ideal for ESD protection on Response Time is Typically <...
ESD8L5.0 Key Features
- Ultra Low Capacitance 0.5 pF sensitive ponents that require ultra-low
- Low Clamping Voltage capacitance from ESD and transient voltage
- Small Body Outline Dimensions events. Excellent clamping capability, low
- Stand-off Voltage: 5V capacitance, low leakage, and fast response time
- Low Leakage make these parts ideal for ESD protection on
- Response Time is Typically < 1.0 ns designs where board space is at a premium
- IEC61000-4-2 Level 4 ESD Protection Because of its low capacitance, it is suited for use
- Available in SOD-882 Package in high frequency designs such as USB 2.0 high speed and antenna line
