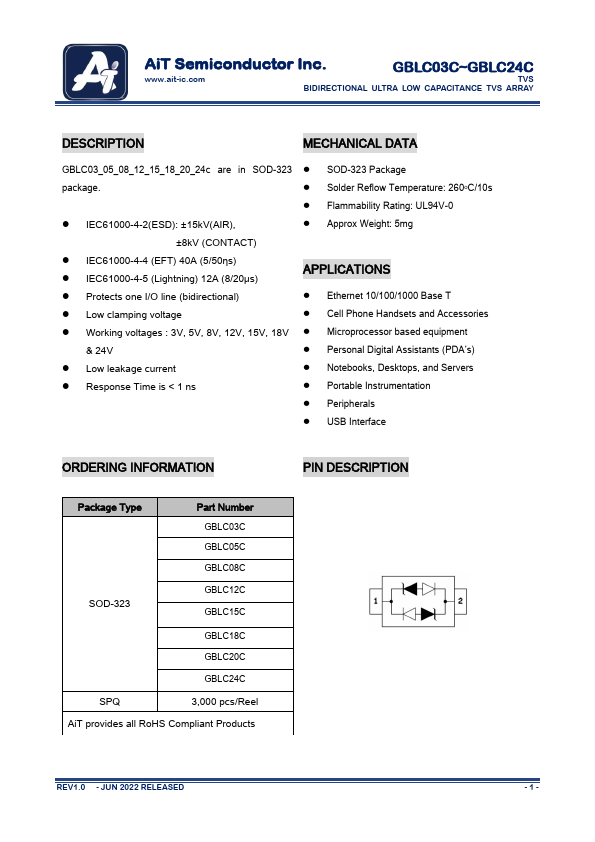

GBLC08C
DESCRIPTION
MECHANICAL DATA
GBLC03_05_08_12_15_18_20_24c are in SOD-323
- SOD-323 Package package.
- Solder Reflow Temperature: 260o C/10s
- Flammability Rating: UL94V-0
- IEC61000-4-2(ESD): ±15k V(AIR),
- Approx Weight: 5mg
±8k V (CONTACT)
- IEC61000-4-4 (EFT) 40A (5/50ηs)
- IEC61000-4-5 (Lightning) 12A (8/20μs)
APPLICATIONS
- Protects one I/O line (bidirectional)
- Ethernet 10/100/1000 Base T
- Low clamping voltage
- Cell Phone Handsets and Accessories
- Working voltages : 3V, 5V, 8V, 12V, 15V, 18V
- Microprocessor based equipment
& 24V
- Personal Digital Assistants (PDA’s)
- Low leakage current
- Notebooks, Desktops, and Servers
- Response Time is < 1 ns
- Portable Instrumentation
- Peripherals
- USB Interface
ORDERING INFORMATION
Package Type SOD-323
Part Number GBLC03C GBLC05C GBLC08C GBLC12C GBLC15C
GBLC18C GBLC20C GBLC24C
3,000 pcs/Reel
Ai T provides all Ro HS pliant Products
PIN DESCRIPTION
REV1.0
- JUN 2022 RELEASED
-1-
