GBLC05 - 350W Surface Mount Transient Voltage Suppressor Array

This page provides the datasheet information for the GBLC05, a member of the GBLC03 350W Surface Mount Transient Voltage Suppressor Array family.

Features

  • 61000-4-2(ESD): Air-15KV, Contact-8KV.
  • Uni-directional & Bi-directional configuration.
  • Stand-off voltage: 3.3V-24V.
  • Low leakage.
  • Low capacitance, 3pF maximum.
  • Replacement for MLV(0805).
  • Protect one poer or I/O port.
  • Low clamping voltage,.
  • Suffix "G" indicates Halogen-free part, ex. GBLC03G.
  • In compliance with EU RoHS 2002/95/EC directives. 0.055 (1.40) 0.047 (1.20) Outline SOD-323 0.07 1 (1.80 ) 0.

📥 Download Datasheet

Datasheet preview – GBLC05

Datasheet Details

Part number GBLC05
Manufacturer CITC
File Size 47.72 KB
Description 350W Surface Mount Transient Voltage Suppressor Array
Datasheet download datasheet GBLC05 Datasheet

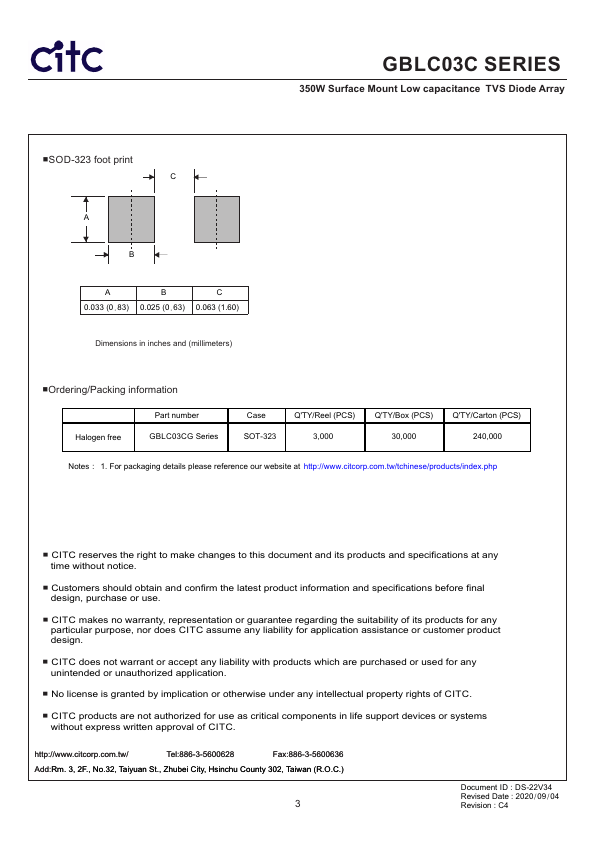

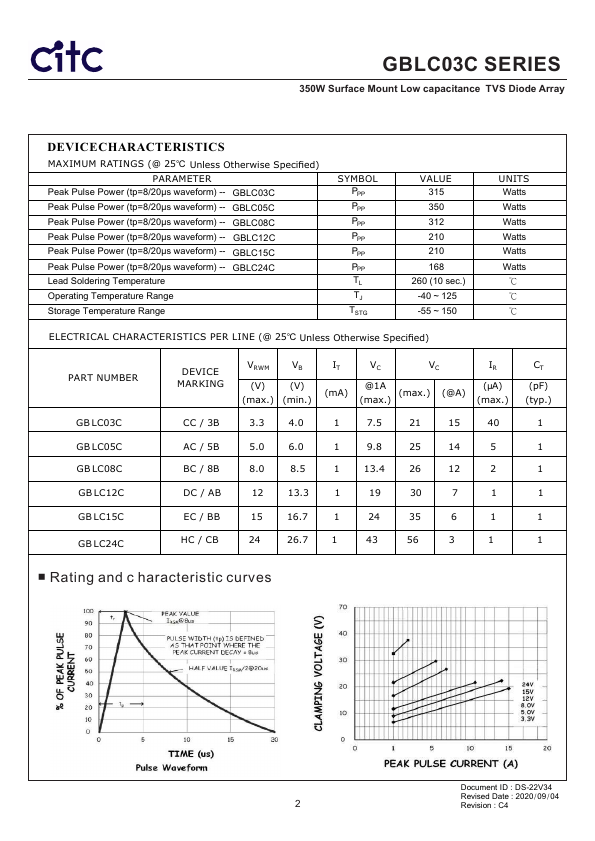

Additional preview pages of the GBLC05 datasheet.

📁 Similar Datasheet

  • GBLC05 - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC05C - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC05CDN - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC05CI - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC05CIDFN - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC05I - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC03 - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC03C - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC03CI - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
  • GBLC03CIDFN - ULTRA LOW CAPACITANCE TVS ARRAY (Protek Devices)
Other Datasheets by CITC
  • GBLC05C - 350W Surface Mount Transient Voltage Suppressor Array
  • GBLC03 - 350W Surface Mount Transient Voltage Suppressor Array
  • GBLC03C - 350W Surface Mount Transient Voltage Suppressor Array
  • GBLC08 - 350W Surface Mount Transient Voltage Suppressor Array
  • GBLC08C - 350W Surface Mount Transient Voltage Suppressor Array
  • GBLC12 - 350W Surface Mount Transient Voltage Suppressor Array
  • GBLC12C - 350W Surface Mount Transient Voltage Suppressor Array
  • GBLC15 - 350W Surface Mount Transient Voltage Suppressor Array

Full PDF Text Transcription

Click to expand full text
Low Capacitance SMD TVS Array Chip Integration Technology Corporation GBLC03 SERIES 350W Surface Mount Transient Voltage Suppressor Array VOLTAGE : 3.3 TO 24Volts 0.014 (0.35) 0.010 (0.25) Features • 61000-4-2(ESD): Air-15KV, Contact-8KV. • Uni-directional & Bi-directional configuration. • Stand-off voltage: 3.3V-24V. • Low leakage. • Low capacitance, 3pF maximum. • Replacement for MLV(0805). • Protect one poer or I/O port. • Low clamping voltage, • Suffix "G" indicates Halogen-free part, ex.GBLC03G. • In compliance with EU RoHS 2002/95/EC directives. 0.055 (1.40) 0.047 (1.20) Outline SOD-323 0.07 1 (1.80 ) 0.06 3 (1.60 ) 0.006 (0.15) 0.003 (0.08) Mechanical data 0.03 9 (1.00 )Max.
