GBLC03C
GBLC03C is 350W Surface Mount Transient Voltage Suppressor Array manufactured by Chip Integration Technology.
- Part of the GBLC03 comparator family.
- Part of the GBLC03 comparator family.

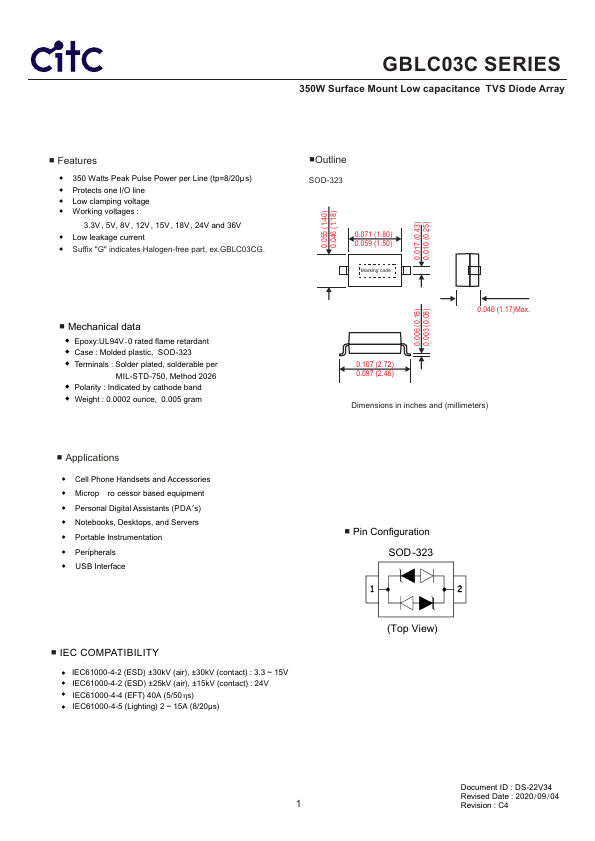

GBLC03C SERIES
350W Surface Mount Low capacitance TVS Diode Array
- Features
- 350 Watts Peak Pulse Power per Line (tp=8/20µ s)
- Protects one I/O line
- Low clamping voltage
- Working voltages :
3.3V , 5V, 8V , 12V , 15V , 18V , 24V and 36V
- Low leakage current
- Suffix "G" indicates Halogen-free part, ex.GBLC03CG.
- Mechanical data
- Epoxy:UL94V-0 rated flame retardant
- Case : Molded plastic, SOD-323
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Polarity : Indicated by cathode band
- Weight : 0.0002 ounce, 0.005 gram
0.055 (1.40) 0.046 (1.18)
- Outline
SOD-323
0.071 (1.80) 0.059 (1.50)
Marking code
0.017 (0.43) 0.010 (0.25)
0.046 (1.17)Max.
0.006 (0.15) 0.003...
