GBLC03C - ULTRA LOW CAPACITANCE TVS ARRAY

This page provides the datasheet information for the GBLC03C, a member of the GBLC03 ULTRA LOW CAPACITANCE TVS ARRAY family.

Description

The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones.

Features

  • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge.
  • Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns.
  • Compatible with IEC 61000-4-5 (Surge).
  • 350 Watts Peak Pulse Pow.

📥 Download Datasheet

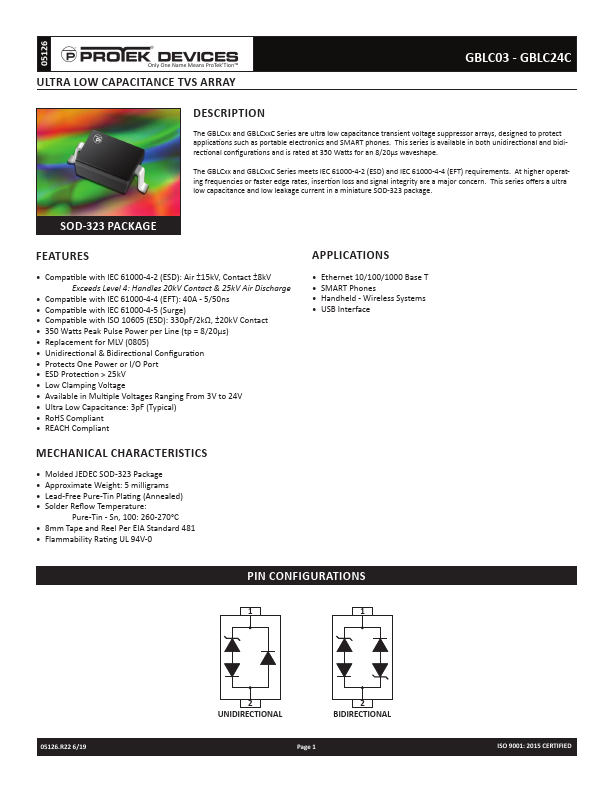

Datasheet preview – GBLC03C

Datasheet Details

Part number GBLC03C
Manufacturer Protek Devices
File Size 346.94 KB
Description ULTRA LOW CAPACITANCE TVS ARRAY
Datasheet download datasheet GBLC03C Datasheet

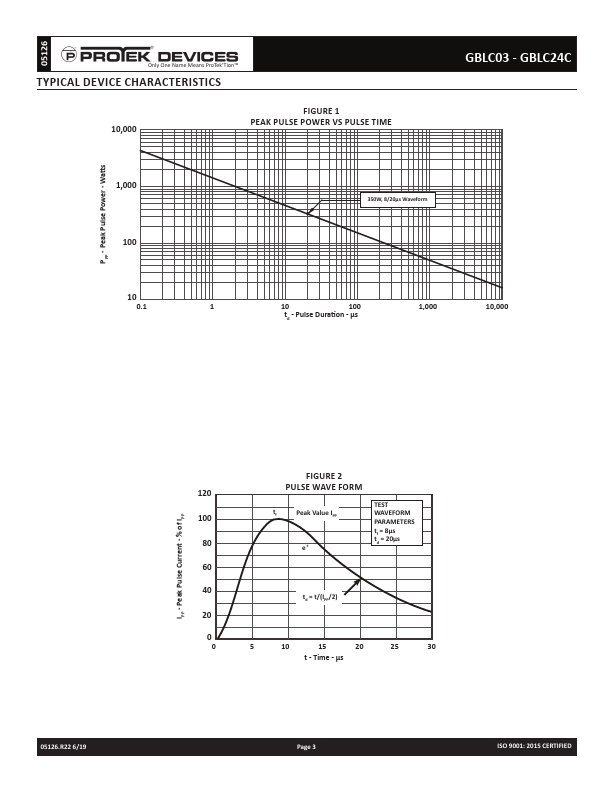

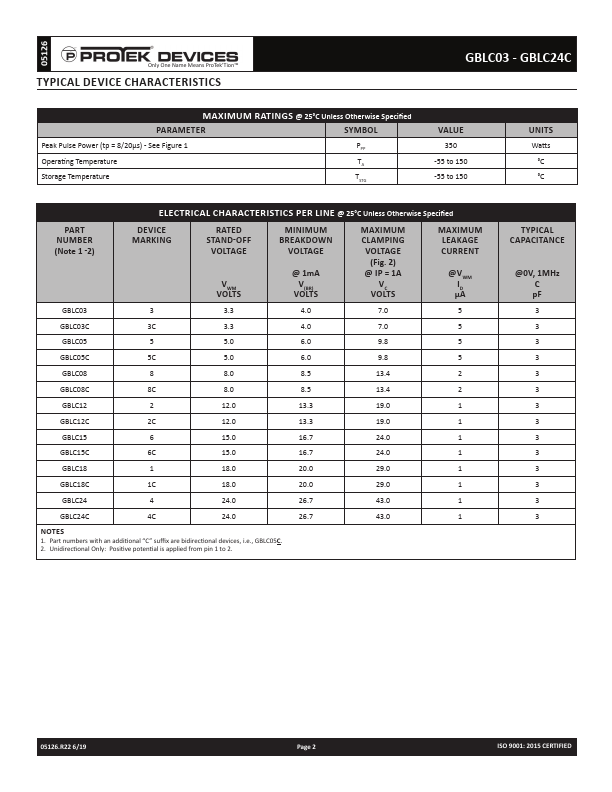

Additional preview pages of the GBLC03C datasheet.

📁 Similar Datasheet

  • GBLC03C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC03 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC05 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC05C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC08 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC08C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC12 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC12C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC15 - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
  • GBLC15C - 350W Surface Mount Transient Voltage Suppressor Array (CITC)
Other Datasheets by Protek Devices
  • GBLC03CI - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC03CIDFN - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC03CIHP - ultra low capacitance transient voltage suppressor array
  • GBLC03 - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC03I - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC05 - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC05C - ULTRA LOW CAPACITANCE TVS ARRAY
  • GBLC05CDN - ULTRA LOW CAPACITANCE TVS ARRAY

Full PDF Text Transcription

Click to expand full text
05126 Only One Name Means ProTek’Tion™ ULTRA LOW CAPACITANCE TVS ARRAY GBLC03 - GBLC24C DESCRIPTION The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The GBLCxx and GBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
