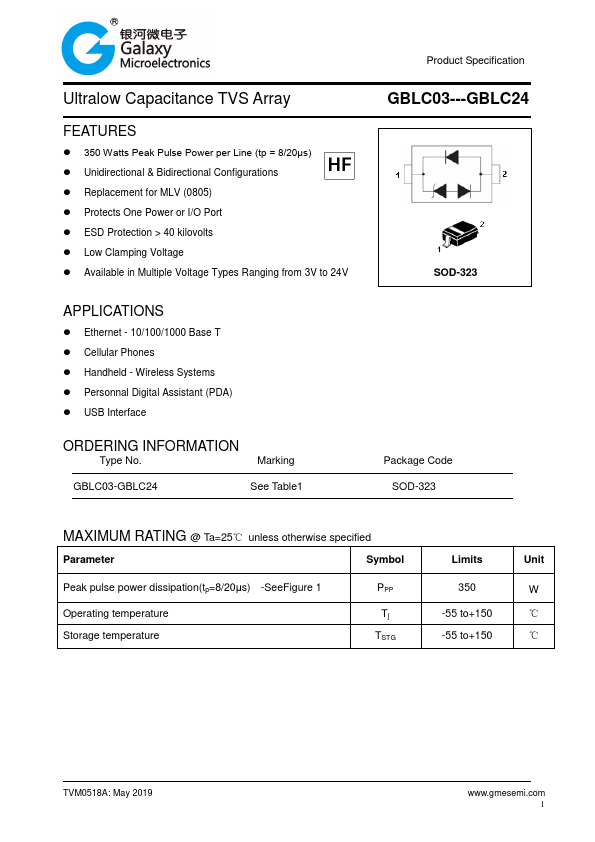

GBLC03
FEATURES
- 350 Watts Peak Pulse Power per Line (tp = 8/20μs)
- Unidirectional & Bidirectional Configurations
- Replacement for MLV (0805)
- Protects One Power or I/O Port
- ESD Protection > 40 kilovolts
- Low Clamping Voltage
- Available in Multiple Voltage Types Ranging from 3V to 24V
APPLICATIONS
- Ethernet
- 10/100/1000 Base T
- Cellular Phones
- Handheld
- Wireless Systems
- Personnal Digital Assistant (PDA)
- USB Interface
ORDERING INFORMATION
Type No.
Marking
GBLC03-GBLC24
See Table1
Product Specification
GBLC03---GBLC24
SOD-323
Package Code SOD-323
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Parameter
Symbol
Peak pulse power dissipation(tp=8/20μs) -See Figure 1 Operating temperature Storage temperature
PPP Tj TSTG
Limits
Unit
-55 to+150
℃
-55 to+150
℃
TVM0518A: May 2019
.gmesemi. 1
