GBLC05

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

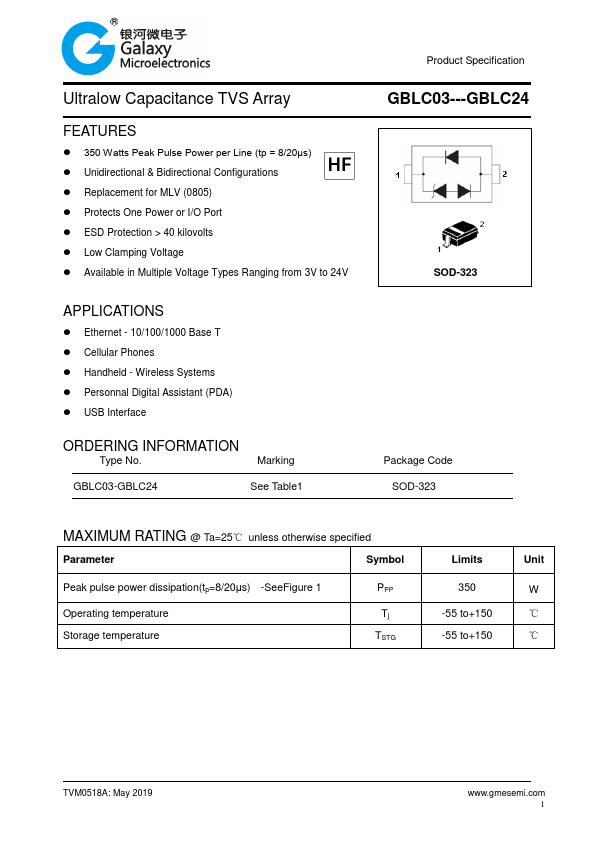

GBLC05 datasheet preview

Datasheet Details

Part number	GBLC05
Datasheet	GBLC05 GBLC03 Datasheet (PDF)
File Size	302.72 KB
Manufacturer	Galaxy Microelectronics
Description	Ultralow Capacitance TVS Array

GBLC05 Overview

Ultralow Capacitance TVS Array.

GBLC05 Key Features

350 Watts Peak Pulse Power per Line (tp = 8/20μs)
Unidirectional & Bidirectional Configurations
Replacement for MLV (0805)
Protects One Power or I/O Port
ESD Protection > 40 kilovolts
Low Clamping Voltage
Available in Multiple Voltage Types Ranging from 3V to 24V
