GBLC05

Manufacturer: Kexin Semiconductor

This datasheet includes multiple variants, all published together in a single manufacturer document.

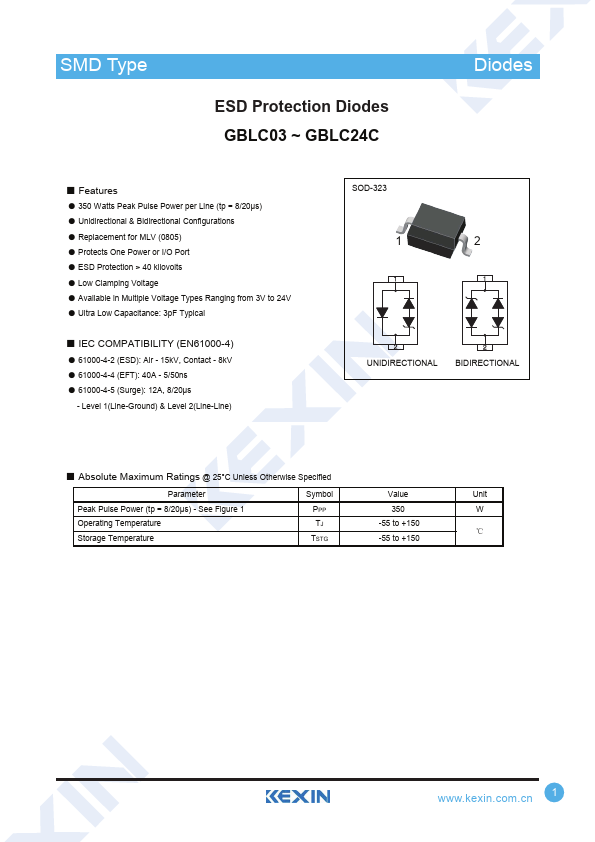

GBLC05 datasheet preview

Datasheet Details

Part number	GBLC05
Datasheet	GBLC05 GBLC03 Datasheet (PDF)
File Size	297.35 KB
Manufacturer	Kexin Semiconductor
Description	ESD Protection Diodes

GBLC05 Overview

SMD Type ESD Protection Diodes GBLC03 ~ GBLC24C TransDisiotodress.

GBLC05 Key Features

350 Watts Peak Pulse Power per Line (tp = 8/20µs)
Unidirectional & Bidirectional Configurations
Replacement for MLV (0805)
Protects One Power or I/O Port
ESD Protection > 40 kilovolts
Low Clamping Voltage
Available in Multiple Voltage Types Ranging from 3V to 24V
Ultra Low Capacitance: 3pF Typical
IEC PATIBILITY (EN61000-4)
61000-4-2 (ESD): Air
