GBLC03C
Features
- 350 Watts Peak Pulse Power per Line (tp = 8/20µs)
- Unidirectional & Bidirectional Configurations
- Replacement for MLV (0805)
- Protects One Power or I/O Port
- ESD Protection > 40 kilovolts
- Low Clamping Voltage
- Available in Multiple Voltage Types Ranging from 3V to 24V
- Ultra Low Capacitance: 3p F Typical
- IEC PATIBILITY (EN61000-4)
- 61000-4-2 (ESD): Air
- 15k V, Contact
- 8k V
- 61000-4-4 (EFT): 40A
- 5/50ns
- 61000-4-5 (Surge): 12A, 8/20µs
- Level 1(Line-Ground) & Level 2(Line-Line)
SOD-323
UNIDIRECTIONAL BIDIRECTIONAL
- Absolute Maximum Ratings @ 25°C Unless Otherwise Specified
Parameter Peak Pulse Power (tp = 8/20µs)
- See Figure 1 Operating Temperature Storage Temperature
Symbol
Value
Unit
-55 to +150
℃
TSTG
-55 to +150
.kexin..cn 1
SMD Type
Trans Disiotodress

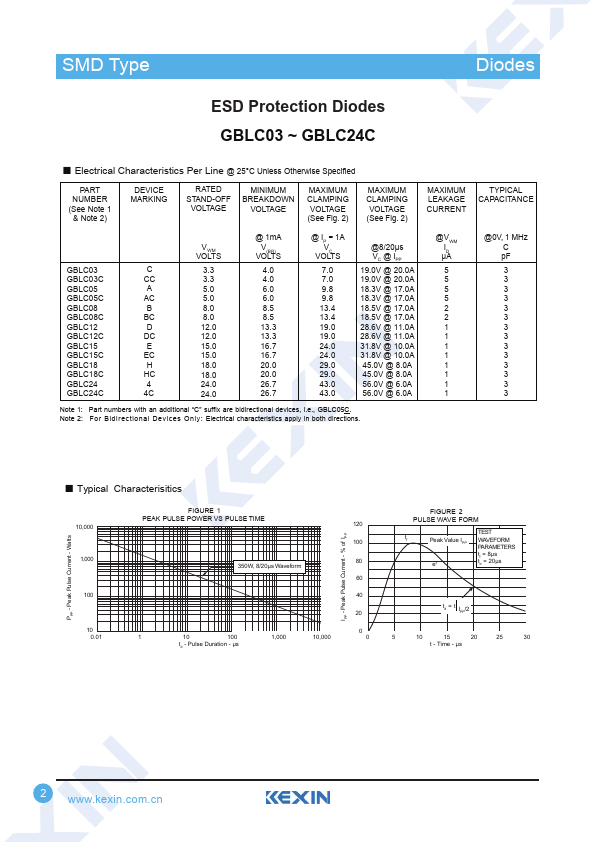

ESD Protection Diodes GBLC03 ~ GBLC24C
- Electrical Characteristics Per Line @ 25°C Unless Otherwise Specified
PART NUMBER (See Note 1 & Note 2)
DEVICE...
