GBLC03

Manufacturer: Kexin Semiconductor

GBLC03 datasheet preview

Datasheet Details

Part number	GBLC03
Datasheet	GBLC03-Kexin.pdf
File Size	297.35 KB
Manufacturer	Kexin Semiconductor
Description	ESD Protection Diodes

GBLC03 Overview

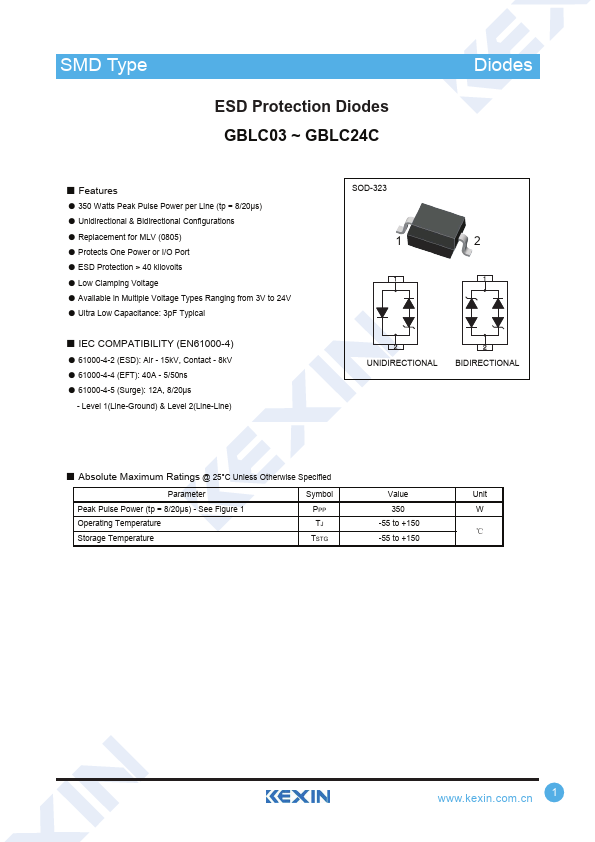

SMD Type ESD Protection Diodes GBLC03 ~ GBLC24C TransDisiotodress.

GBLC03 Key Features

350 Watts Peak Pulse Power per Line (tp = 8/20µs)
Unidirectional & Bidirectional Configurations
Replacement for MLV (0805)
Protects One Power or I/O Port
ESD Protection > 40 kilovolts
Low Clamping Voltage
Available in Multiple Voltage Types Ranging from 3V to 24V
Ultra Low Capacitance: 3pF Typical
IEC PATIBILITY (EN61000-4)
61000-4-2 (ESD): Air
