MMBT2222AW Datasheet NPN Silicon Epitaxial Planar Transistor

Manufacturer: AiT Semiconductor

Overview: AiT Semiconductor Inc. MMBT2222W_AW www.ait-ic.com TRANSISTOR NPN SILICON EPITAXIAL PLANAR.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	MMBT2222AW
Manufacturer	AiT Semiconductor
File Size	916.14 KB
Description	NPN SILICON EPITAXIAL PLANAR TRANSISTOR
Datasheet	MMBT2222AW MMBT2222W Datasheet (PDF)

General Description

APPLICATION The MMBT2222W & MMBT2222AW are available in For Switching and amplifier applications SOT-323 package.

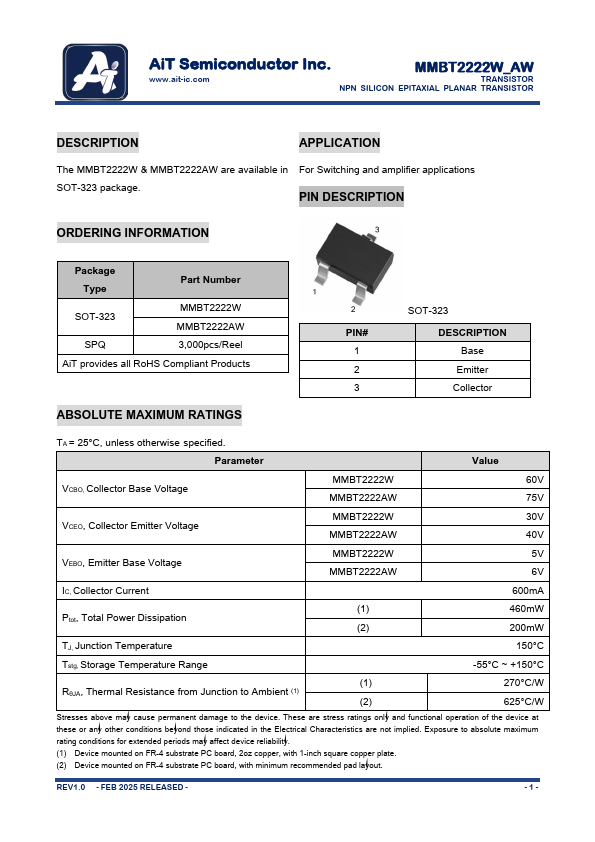

PIN DESCRIPTION ORDERING INFORMATION Package Type Part Number SOT-323 MMBT2222W MMBT2222AW SPQ 3,000pcs/Reel AiT provides all RoHS Compliant Products PIN# 1 2 3 SOT-323 DESCRIPTION Base Emitter Collector ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified.

VCBO, Collector Base Voltage Parameter MMBT2222W MMBT2222AW Value 60V 75V MMBT2222W 30V VCEO, Collector Emitter Voltage MMBT2222AW 40V VEBO, Emitter Base Voltage MMBT2222W 5V MMBT2222AW 6V IC, Collector Current Ptot, Total Power Dissipation 600mA (1) 460mW (2) 200mW TJ, Junction Temperature 150°C Tstg, Storage Temperature Range -55°C ~ +150°C (1) RθJA, Thermal Resistance from Junction to Ambient (1) (2) 270°C/W 625°C/W Stresses above may cause permanent damage to the device.
