PZT2222A Datasheet | AiT Semiconductor

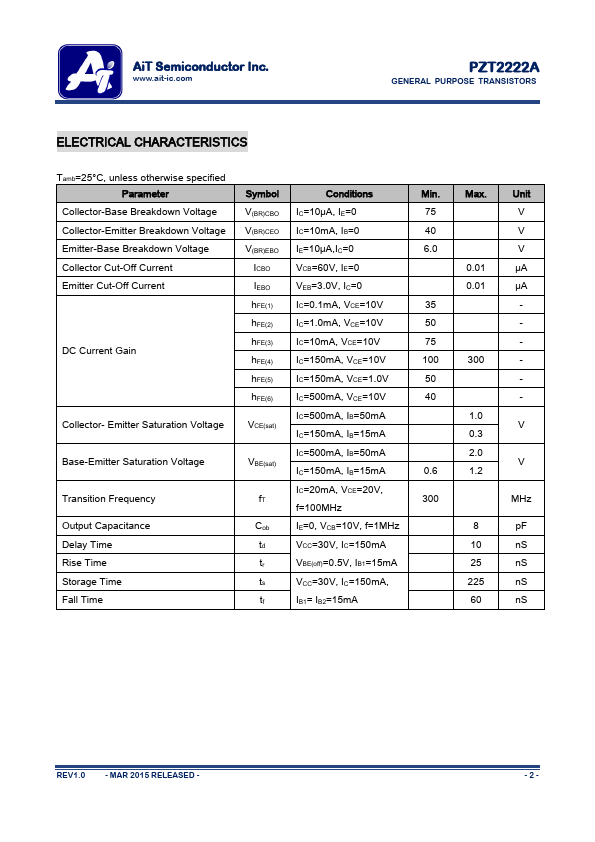

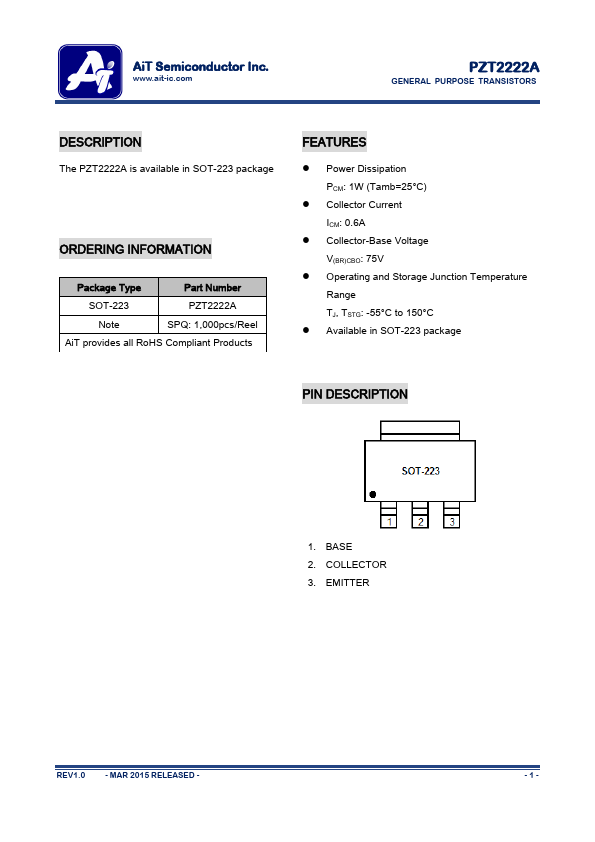

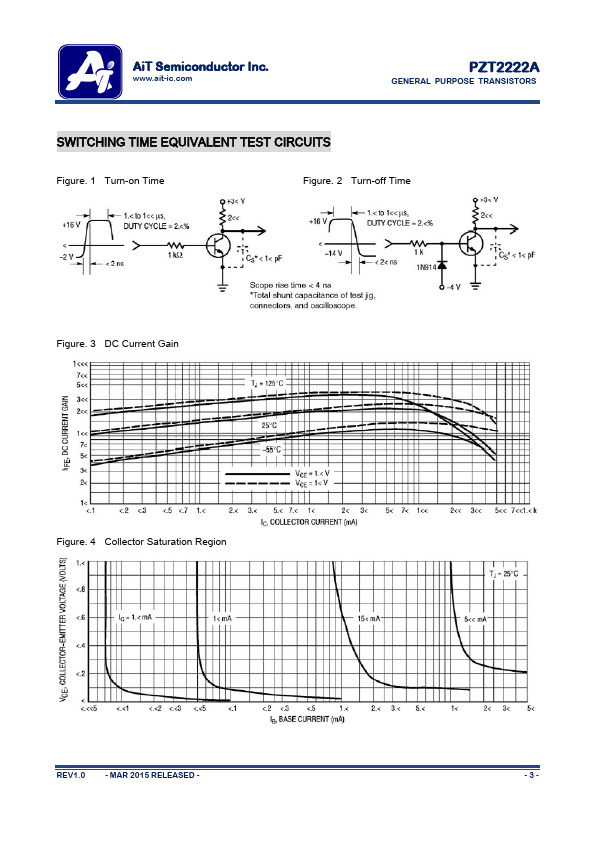

DESCRIPTION The PZT2222A is available in SOT-223 package ORDERING INFORMATION Package Type Part Number SOT-223 Note SPQ: 1,000pcs/Reel Ai T provides all Ro HS pliant Products FEATURES - Power Dissipation PCM: 1W (Tamb=25°C) - Collector Current ICM: 0.6A - Collector-Base Voltage V(BR)CBO: 75V - Operating and Storage Junction Temperature Range TJ, TSTG: -55°C to 150°C - Available in SOT-223 package PIN DESCRIPTION 1. BASE 2. COLLECTOR 3. EMITTER REV1.0 - MAR 2015 RELEASED - -1- Ai T Semiconductor Inc. .ait-ic. GENERAL PURPOSE TRANSISTORS ELECTRICAL CHARACTERISTICS Tamb=25°C, unless otherwise specified Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Emitter Cut-Off Current DC Current Gain Collector- Emitter Saturation Voltage Base-Emitter Saturation Voltage Transition Frequency Output Capacitance Delay Time Rise Time Storage Time Fall Time Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO h FE(1) h FE(2) h FE(3) h FE(4) h FE(5) h FE(6) VCE(sat) VBE(sat) f T Cob td tr ts tf Conditions IC=10μA, IE=0 IC=10m A, IB=0 IE=10μA,IC=0 VCB=60V, IE=0 VEB=3.0V, IC=0 IC=0.1m A, VCE=10V IC=1.0m A, VCE=10V IC=10m A, VCE=10V IC=150m A, VCE=10V IC=150m A, VCE=1.0V IC=500m A, VCE=10V IC=500m A, IB=50m A IC=150m A, IB=15m A IC=500m A, IB=50m A IC=150m A, IB=15m A IC=20m A, VCE=20V, f=100MHz IE=0, VCB=10V, f=1MHz VCC=30V, IC=150m A VBE(off)=0.5V, IB1=15m A VCC=30V, IC=150m A, IB1= IB2=15m A Min. 75 40 6.0 35 50 75 100 50 40 0.6...
