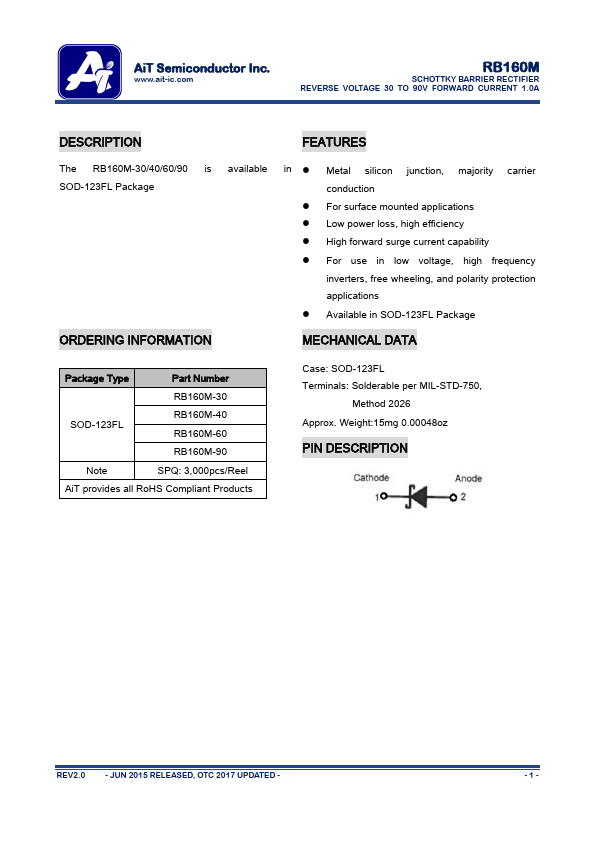

RB160M-90
RB160M-90 is 30V 1A SCHOTTKY BARRIER RECTIFIER manufactured by AiT Semiconductor.
- Part of the RB160M-30 comparator family.
- Part of the RB160M-30 comparator family.
DESCRIPTION
FEATURES
The RB160M-30/40/60/90 is available in
- Metal silicon junction, majority carrier
SOD-123FL Package conduction
- For surface mounted applications
- Low power loss, high efficiency
- High forward surge current capability
- For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
- Available in SOD-123FL Package
ORDERING INFORMATION
MECHANICAL DATA
Package Type
Part Number
RB160M-30
SOD-123FL
RB160M-40 RB160M-60
Note
SPQ: 3,000pcs/Reel
Ai T provides all Ro HS pliant Products
Case: SOD-123FL Terminals: Solderable per MIL-STD-750,
Method 2026 Approx. Weight:15mg 0.00048oz
PIN DESCRIPTION
REV2.0
- JUN 2015 RELEASED, OTC 2017 UPDATED
- -1-
Ai T Semiconductor Inc.
.ait-ic.
RB160M
SCHOTTKY BARRIER RECTIFIER REVERSE VOLTAGE 30 TO 90V FORWARD CURRENT 1.0A

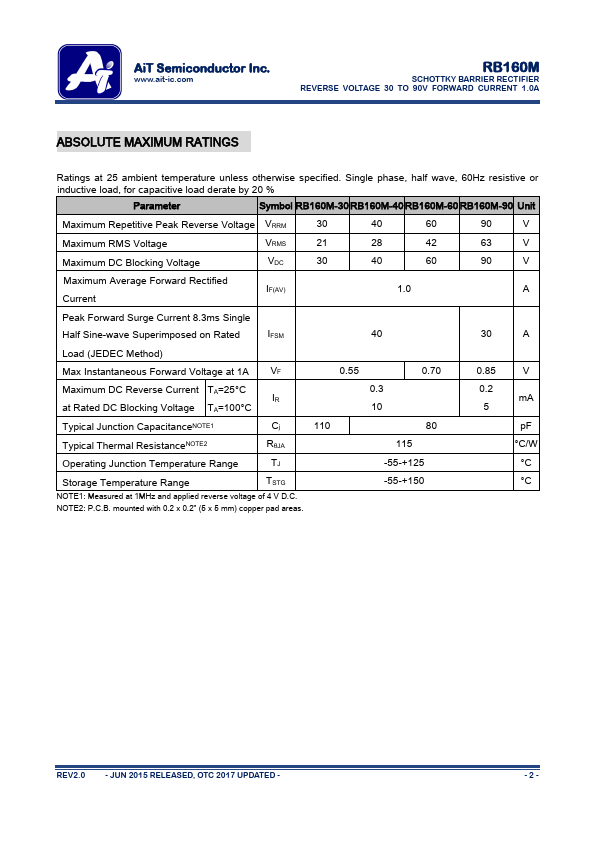

ABSOLUTE MAXIMUM RATINGS
Ratings at 25 ambient temperature unless otherwise specified. Single phase, half wave, 60Hz resistive or inductive load, for capacitive load derate by 20 %
Parameter
Symbol RB160M-30 RB160M-40 RB160M-60 RB160M-90 Unit
Maximum Repetitive Peak Reverse Voltage VRRM
Maximum RMS Voltage
VRMS
Maximum DC Blocking...
