Datasheet Details
| Part number | SLA6805MP |
|---|---|
| Manufacturer | Allegro Micro Systems |
| File Size | 552.80 KB |
| Description | High Voltage 3-Phase Motor Drivers |
| Datasheet |

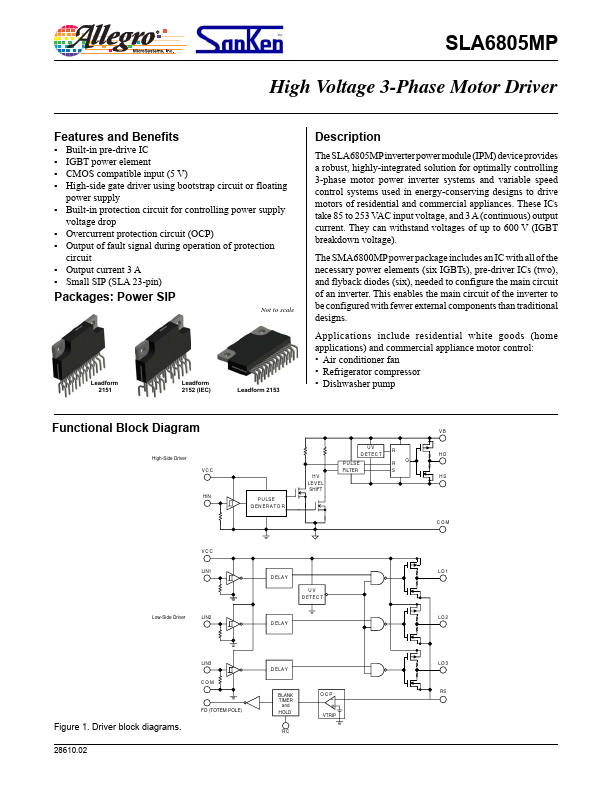

 SLA6805MP Datasheet
|
|
|
General Description
The SLA6805MP inverter power module (IPM) device provides a robust, highly-integrated solution for optimally controlling 3-phase motor power inverter systems and variable speed control systems used in energy-conserving designs to drive motors of residential and commercial appliances.
Key Features
- Built-in pre-drive IC IGBT power element CMOS compatible input (5 V) High-side gate driver using bootstrap circuit or floating power supply Built-in protection circuit for controlling power supply voltage drop Overcurrent protection circuit (OCP) Output of fault signal during operation of protection circuit Output current 3 A Small SIP (SLA 23-pin) Not to scale.
