Datasheet Details
| Part number | A4918-1A |
|---|---|
| Manufacturer | Allegro MicroSystems |
| File Size | 785.16 KB |
| Description | Automotive Three-Phase MOSFET Driver |
| Datasheet | A4918-1A-Allegro.pdf |
|
|
Overview: A4918-1A Automotive Three-Phase MOSFET Driver.
| Part number | A4918-1A |
|---|---|
| Manufacturer | Allegro MicroSystems |
| File Size | 785.16 KB |
| Description | Automotive Three-Phase MOSFET Driver |
| Datasheet | A4918-1A-Allegro.pdf |
|
|
|

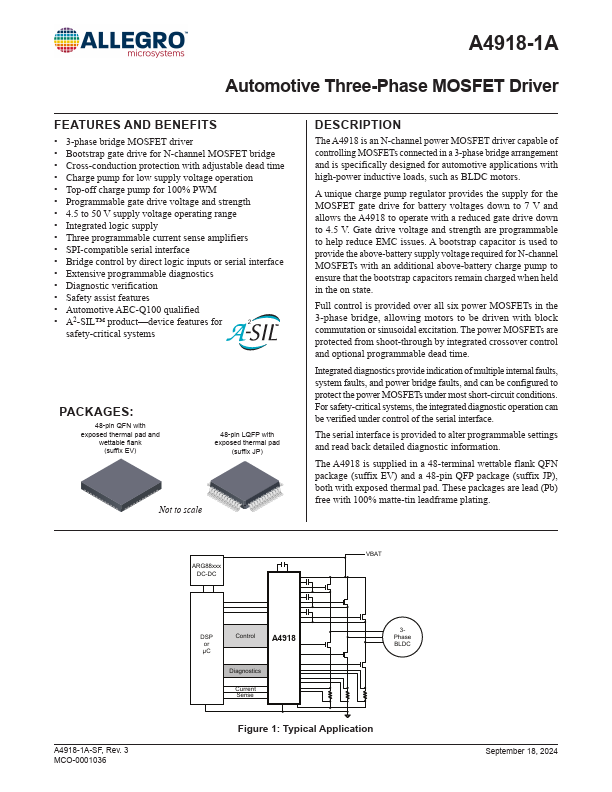

The A4918 is an N-channel power MOSFET driver capable of controlling MOSFETs connected in a 3-phase bridge arrangement and is specifically designed for automotive applications with high-power inductive loads, such as BLDC motors.
A unique charge pump regulator provides the supply for the MOSFET gate drive for battery voltages down to 7 V and allows the A4918 to operate with a reduced gate drive down to 4.5 V.
Gate drive voltage and strength are programmable to help reduce EMC issues.
