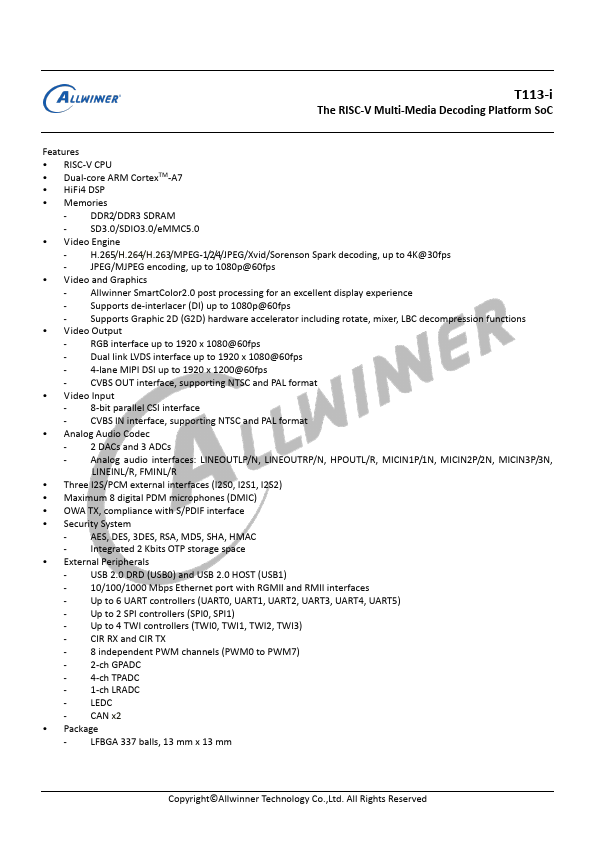

T113-i Overview
Key Features
- DDR2/DDR3 SDRAM
- SD3.0/SDIO3.0/eMMC5.0 Video Engine
- JPEG/MJPEG encoding, up to 1080p@60fps Video and Graphics
- Allwinner SmartColor2.0 post processing for an excellent display experience
- Supports de-interlacer (DI) up to 1080p@60fps
- Supports Graphic 2D (G2D) hardware accelerator including rotate, mixer, LBC decompression functions Video Output
- RGB interface up to 1920 x 1080@60fps
- Dual link LVDS interface up to 1920 x 1080@60fps
- 4-lane MIPI DSI up to 1920 x 1200@60fps
- CVBS OUT interface, supporting NTSC and PAL format Video Input
