AOD458 - 250V 14A N-Channel MOSFET

Datasheet Summary

Description

Product Summary The AOD458 has been fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular ACDC applications.By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability this device can be adop

📥 Download Datasheet

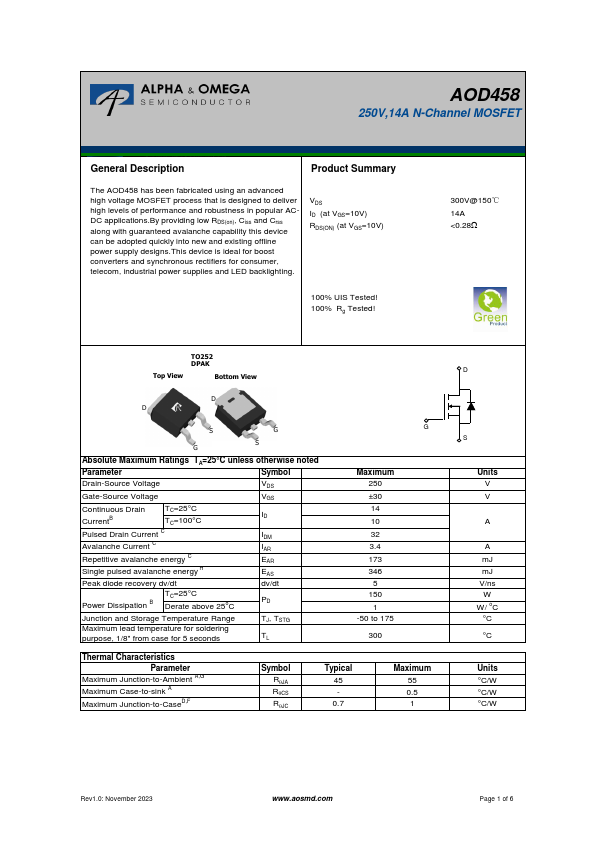

Datasheet preview – AOD458

Datasheet Details

Part number AOD458
Manufacturer Alpha & Omega Semiconductors
File Size 443.87 KB
Description 250V 14A N-Channel MOSFET
Datasheet download datasheet AOD458 Datasheet

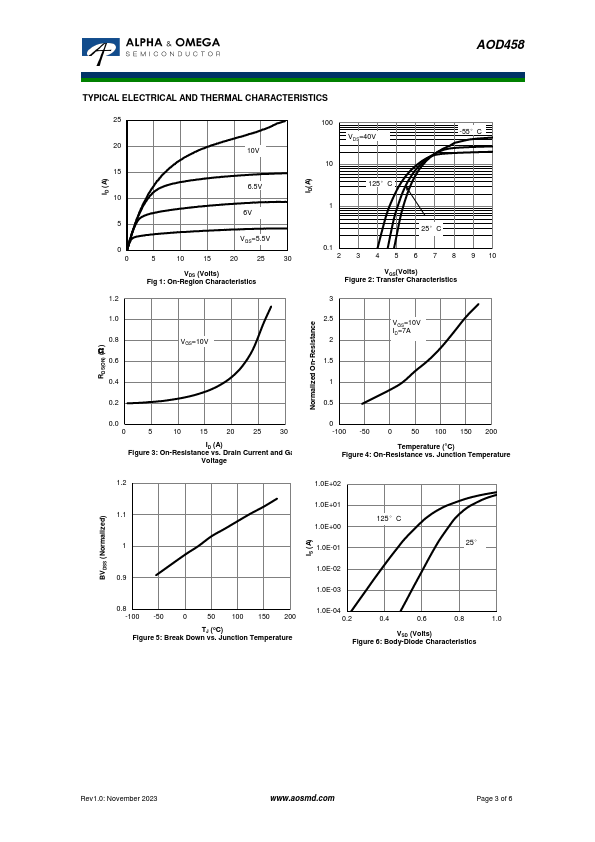

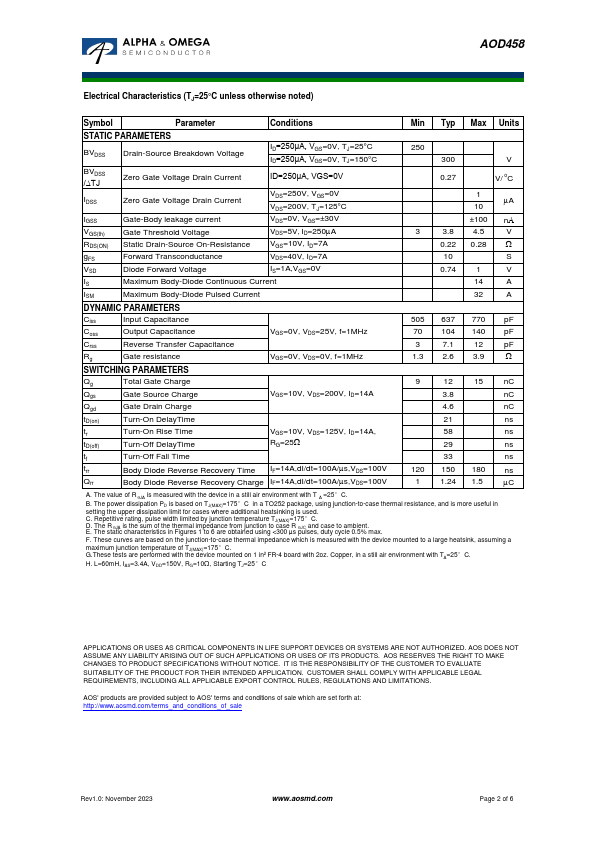

Additional preview pages of the AOD458 datasheet.

📁 Similar Datasheet

  • AOD458 - N-Channel MOSFET (INCHANGE)
  • AOD450 - N-Channel MOSFET (INCHANGE)
  • AOD4504 - N-Channel MOSFET (INCHANGE)
  • AOD454A - N-Channel MOSFET (INCHANGE)
  • AOD456 - N-Channel MOSFET (INCHANGE)
  • AOD400 - N-channel 30V MOSFET (VBsemi)
  • AOD403 - P-Channel MOSFET (VBsemi)
  • AOD403 - P-Channel MOSFET (INCHANGE)
  • AOD405 - P-Channel MOSFET (Freescale)
  • AOD405 - P-Channel 30V MOSFET (VBsemi)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text
AOD458 250V,14A N-Channel MOSFET General Description Product Summary The AOD458 has been fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular ACDC applications.By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability this device can be adopted quickly into new and existing offline power supply designs.This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting. VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) 100% UIS Tested! 100% Rg Tested! 300V@150℃ 14A <0.
