AOZ13937DI-04 - 32V Smart Protection Switch

This page provides the datasheet information for the AOZ13937DI-04, a member of the AOZ13937DI-03 32V Smart Protection Switch family.

Datasheet Summary

Description

AOZ13937DI is protection switch intended for applications that require reverse current protection.

The input operating voltage range is from 3.4 V to 32 V, and both VIN and VOUT terminals are rated at 39 V absolute maximum.

The power switch is capable for 20 A surge current for 10ms.

Features

8 A continuous current.
20 A peak current for 10 ms @ 2% duty cycle.
20 mΩ typical ON resistance.
3.4 V to 32 V operating input voltage.
VIN and VOUT are rated 39 V Abs max.
Ideal Diode True Reverse Current Blocking (IDTRCB).
Programmable Soft-Start.
VIN Under-Voltage Lockout (UVLO).
Programmable VIN Over-Voltage Lockout (OVLO).
Thermal Shutdown Protection.
Startup Short Circuit Protection.

Datasheet Details

Part number	AOZ13937DI-04
Manufacturer	Alpha & Omega Semiconductors
File Size	2.20 MB
Description	32V Smart Protection Switch
Datasheet	AOZ13937DI-04 Datasheet

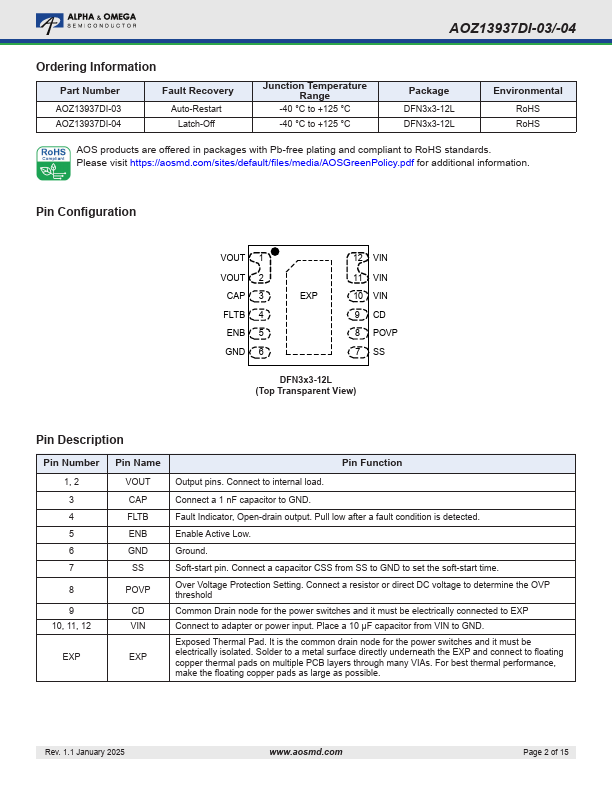

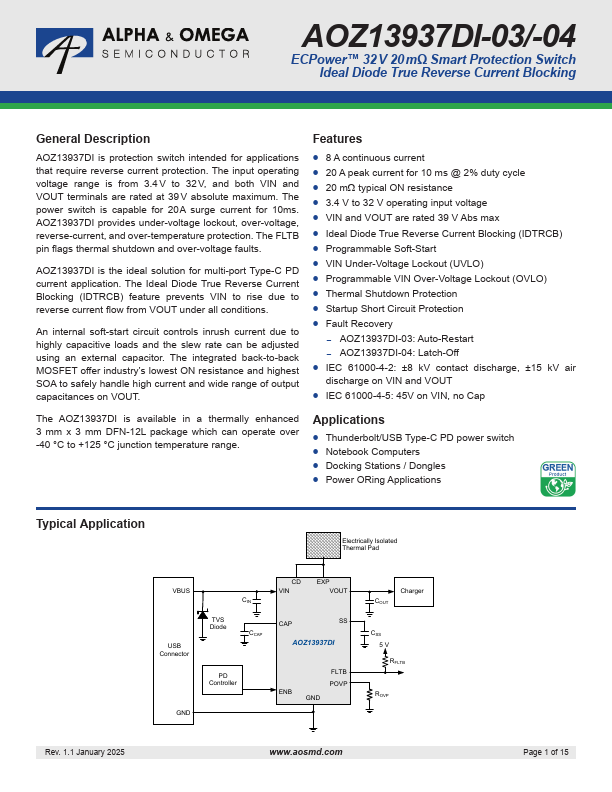

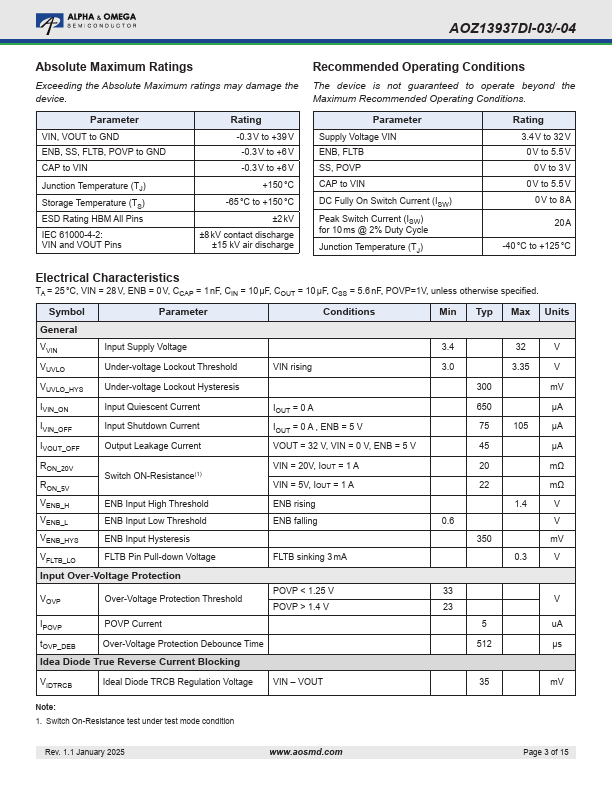

Additional preview pages of the AOZ13937DI-04 datasheet.

📁 Similar Datasheet

AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1017 - EZBuck 3A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1018 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1019 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1020 - 2A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1021 - EZBuck 3A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1024D - EZBuck 4A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ3010PI - 2A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3011PI - 3A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3017 - 4A Synchronous Buck Regulator (ALPHA & OMEGA)

Full PDF Text Transcription

Click to expand full text

AOZ13937DI-03/-04 ECPower™ 32 V 20 mΩ Smart Protection Switch Ideal Diode True Reverse Current Blocking General Description AOZ13937DI is protection switch intended for applications that require reverse current protection. The input operating voltage range is from 3.4 V to 32 V, and both VIN and VOUT terminals are rated at 39 V absolute maximum. The power switch is capable for 20 A surge current for 10ms. AOZ13937DI provides under-voltage lockout, over-voltage, reverse-current, and over-temperature protection. The FLTB pin flags thermal shutdown and over-voltage faults. AOZ13937DI is the ideal solution for multi-port Type-C PD current application. The Ideal Diode True Reverse Current Blocking (IDTRCB) feature prevents VIN to rise due to reverse current flow from VOUT under all conditions.
