AOZ2261AQI-15 Datasheet 28v/8a Synchronous Regulator

Manufacturer: Alpha & Omega Semiconductors

Overview: AOZ2261AQI-15 28V/8A Synchronous EZBuckTM Regulator General.

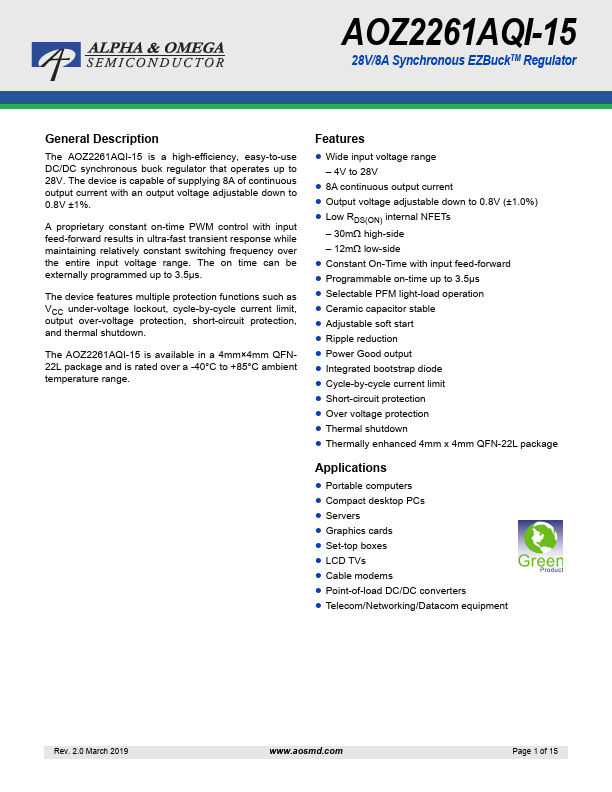

General Description

The AOZ2261AQI-15 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V.

The device is capable of supplying 8A of continuous output current with an output voltage adjustable down to 0.8V ±1%.

A proprietary constant on-time PWM control with input feed-forward results in ultra-fast transient response while maintaining relatively constant switching frequency over the entire input voltage range.

Key Features

  • multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2261AQI-15 is available in a 4mm×4mm QFN22L package and is rated over a -40°C to +85°C ambient temperature range. Features.
  • Wide input voltage range.
  • 4V to 28V.
  • 8A continuous output current.
  • Output voltage adjustable down to 0.8V (±1.0%).
  • Low RDS(ON) internal NFETs.
  • 30m high-si.
