AOZ2261QI-15 - 28V/8A Synchronous Regulator

General Description

The AOZ2261QI-15 is a high-efficiency, easy-to-use DC/ DC synchronous buck regulator that operates up to 28V.

The device is capable of supplying 8A of continuous output current with an output voltage adjustable down to 0.8V (±1.0%).

Key Features

  • multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2261QI-15 is available in a 4mm x 4mm QFN22L package and is rated over a -40°C to +85°C ambient temperature range. Efficiency 100 95 Efficiency vs. Load Current FSW = 450kHz VOUT = 1.05V Efficiency (%) 90 85 80 6.0V 8.4V 75 12.0V 19.5V 70 0 1 2 3 4 5 6 7 8 Output Current (A) Features.
  • Wide.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1020 2A Synchronous Buck Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ2261QI-10 28V/8A Synchronous Regulator
AOZ2261AQI-15 28V/8A Synchronous Regulator
AOZ2261AQI-18 28V/8A Synchronous Regulator
AOZ2261BQI-15 28V/8A Synchronous Regulator
AOZ2261BQI-20 28V/8A Synchronous Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

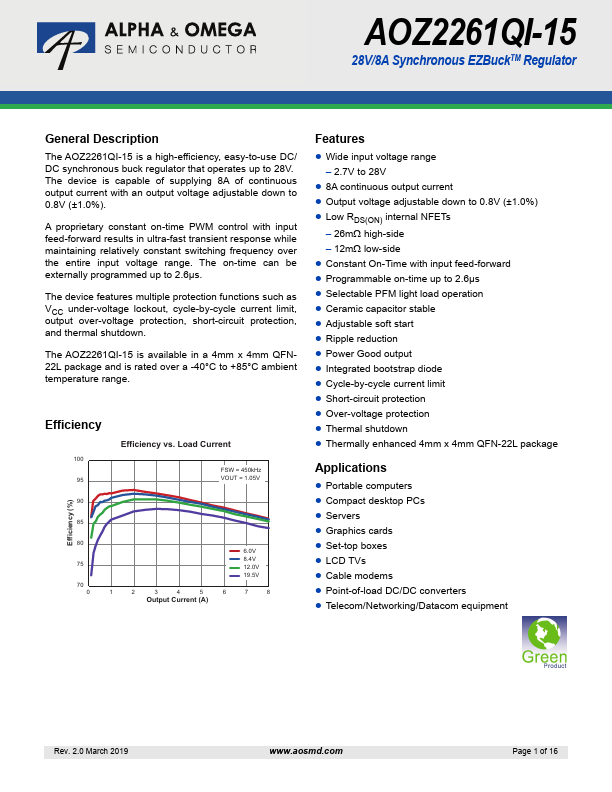

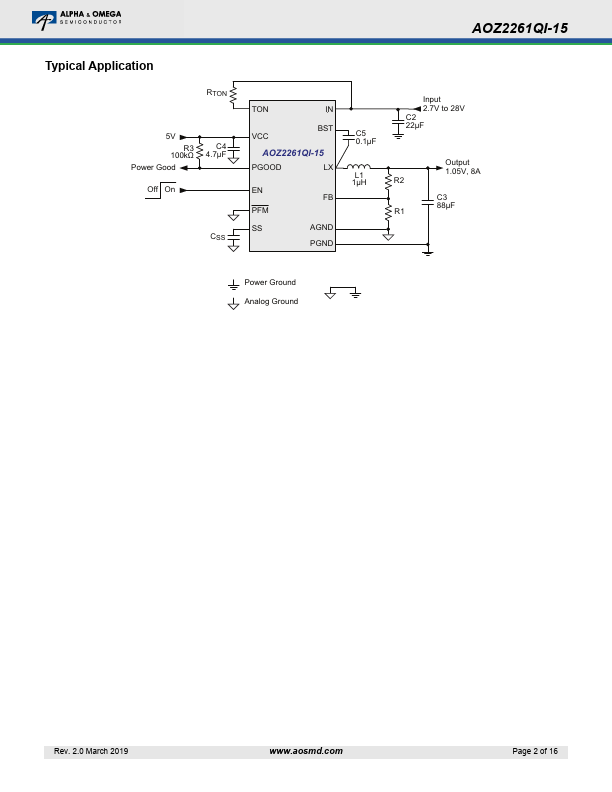

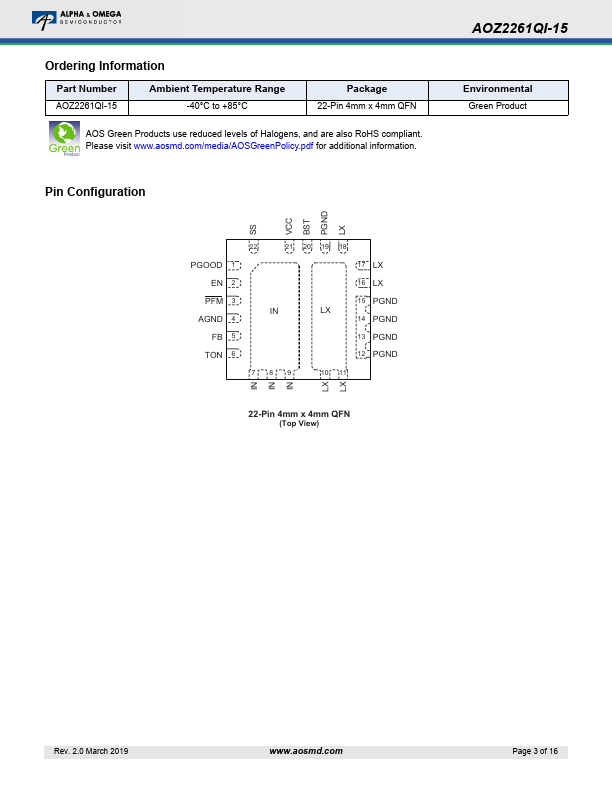

AOZ2261QI-15 28V/8A Synchronous EZBuckTM Regulator General Description The AOZ2261QI-15 is a high-efficiency, easy-to-use DC/ DC synchronous buck regulator that operates up to 28V. The device is capable of supplying 8A of continuous output current with an output voltage adjustable down to 0.8V (±1.0%). A proprietary constant on-time PWM control with input feed-forward results in ultra-fast transient response while maintaining relatively constant switching frequency over the entire input voltage range. The on-time can be externally programmed up to 2.6µs. The device features multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown.
