AOZ7648QI-06 Datasheet PDF - Alpha & Omega Semiconductors Super Transient Response Converter Specs

AOZ7648QI-06 - Super Transient Response Converter

Datasheet Summary

Description

The AOZ7648QI-06 is a secondary side control flyback converter with super transient control scheme.

It supports I2C command for fine accuracy adjustable constant voltage regulation and constant current regulation function.

Features

include multiple protection functions such as VDD under-voltage lockout (UVLO), output under-voltage protection (UVP), output over-voltage protection (OVP) and internal over-temperature protection (OTP). The AOZ7648QI-06 is available in a 6mm×6mm QFN38L package. Features.
Secondary side CV/CC control.
145kHz maximum switching frequency.
Constant ON time control with feed-forward compensation.
No loop compensation components required.
Fast output voltage transient respon.

Datasheet Details

Part number	AOZ7648QI-06
Manufacturer	Alpha & Omega Semiconductors
File Size	1.26 MB
Description	Super Transient Response Converter
Datasheet	AOZ7648QI-06 Datasheet

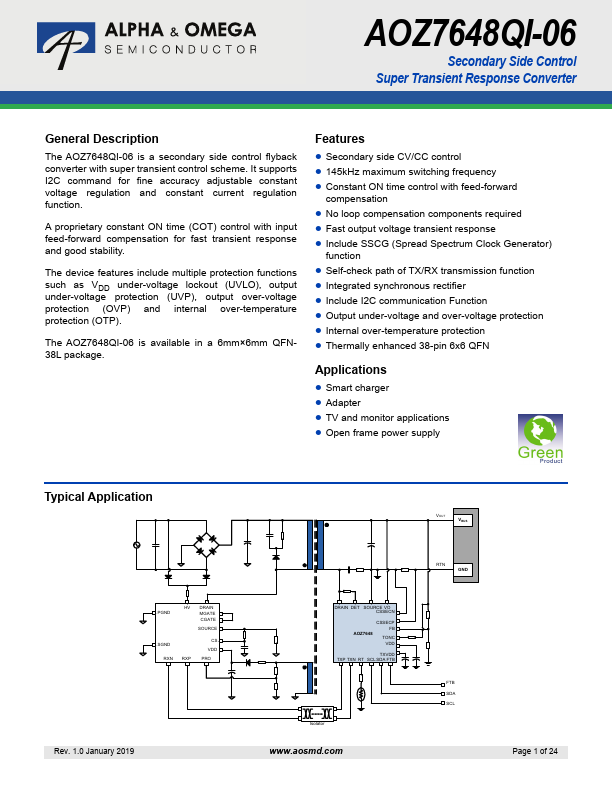

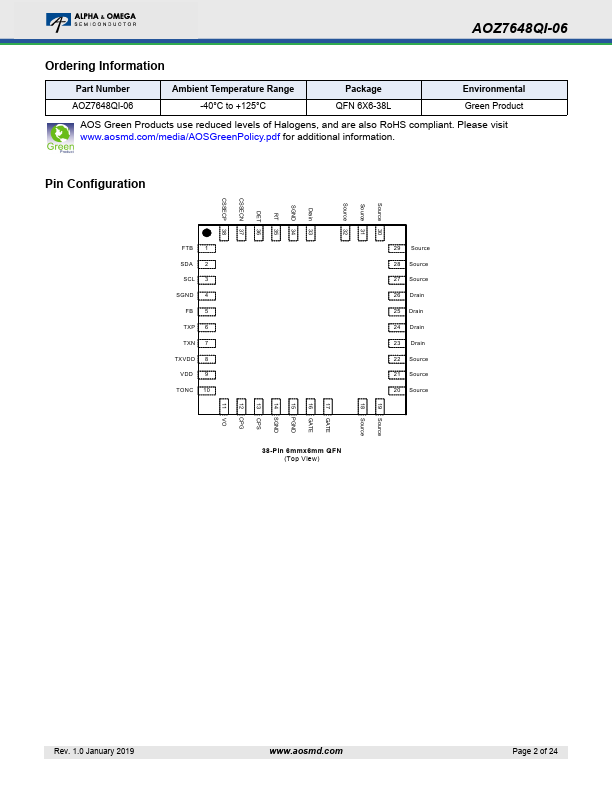

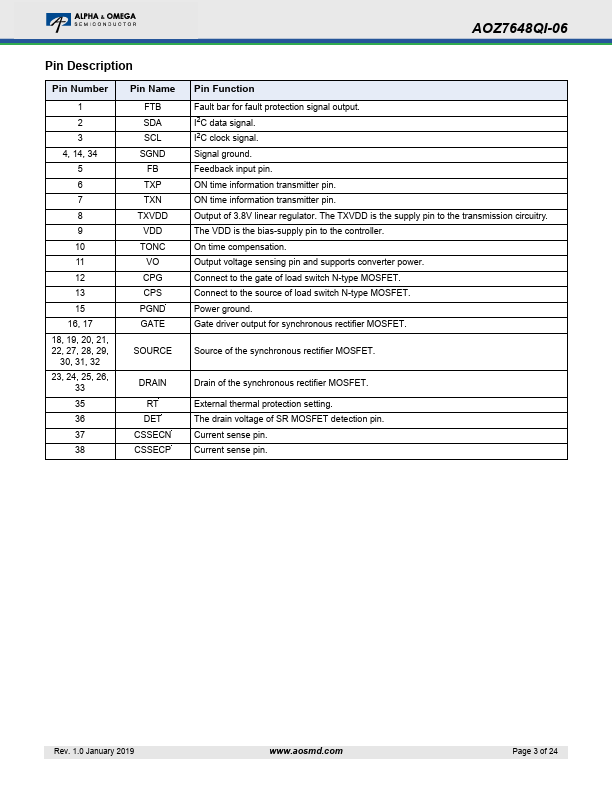

Additional preview pages of the AOZ7648QI-06 datasheet.

📁 Similar Datasheet

AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1017 - EZBuck 3A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1018 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1019 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1020 - 2A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1021 - EZBuck 3A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1024D - EZBuck 4A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ3010PI - 2A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3011PI - 3A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3017 - 4A Synchronous Buck Regulator (ALPHA & OMEGA)

Full PDF Text Transcription

Click to expand full text

AOZ7648QI-06 Secondary Side Control Super Transient Response Converter General Description The AOZ7648QI-06 is a secondary side control flyback converter with super transient control scheme. It supports I2C command for fine accuracy adjustable constant voltage regulation and constant current regulation function. A proprietary constant ON time (COT) control with input feed-forward compensation for fast transient response and good stability. The device features include multiple protection functions such as VDD under-voltage lockout (UVLO), output under-voltage protection (UVP), output over-voltage protection (OVP) and internal over-temperature protection (OTP). The AOZ7648QI-06 is available in a 6mm×6mm QFN38L package.

Published: Dec 3, 2025 |
