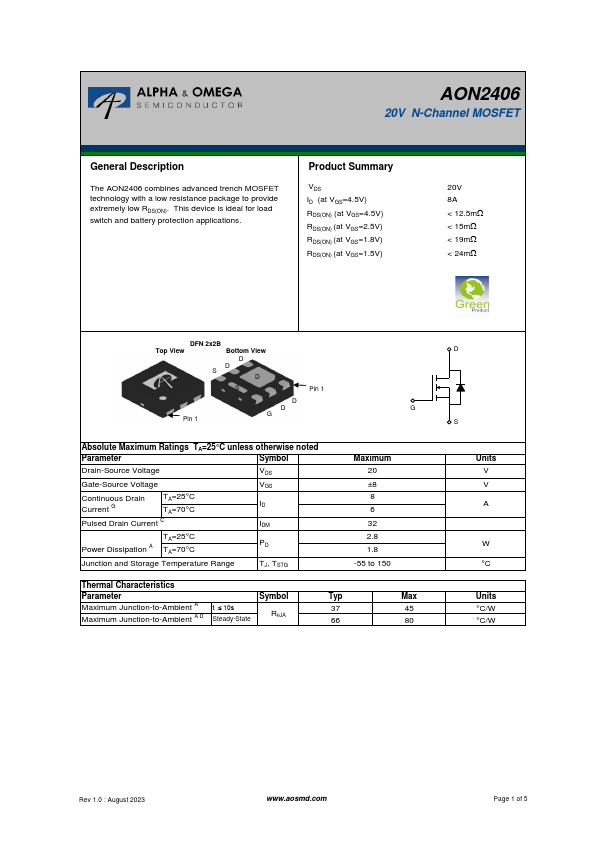

Datasheet Summary
20V N-Channel MOSFET
General Description
The AON2406 bines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is ideal for load switch and battery protection applications.
Product Summary
VDS ID (at VGS=4.5V) RDS(ON) (at VGS=4.5V) RDS(ON) (at VGS=2.5V) RDS(ON) (at VGS=1.8V) RDS(ON) (at VGS=1.5V)
20V 8A < 12.5mW < 15mW < 19mW < 24mW
DFN 2x2B
Top View
Bottom View
Pin 1
Pin...
