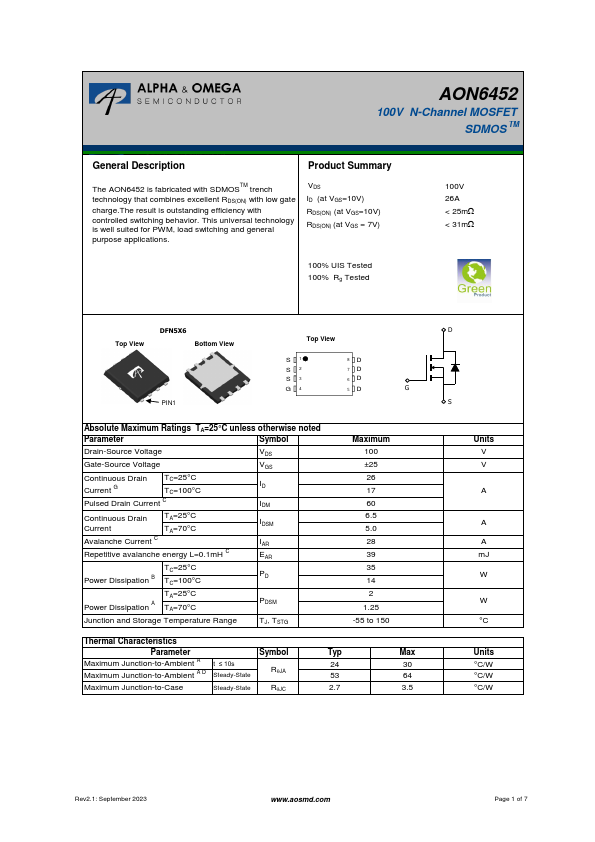

Datasheet Summary
100V N-Channel MOSFET SDMOS TM
General Description
Product Summary
The AON6452 is fabricated with SDMOSTM trench technology that bines excellent RDS(ON) with low gate charge.The result is outstanding efficiency with controlled switching behavior. This universal technology is well suited for PWM, load switching and general purpose applications.
VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 7V)
100% UIS Tested 100% Rg Tested
100V 26A < 25mW < 31mW
Top View
DFN5X6 Bottom View
PIN1
Top View
S1 S2 S3...
