Amazing Microelectronic AZ1013-04F

AZ1013-04F is a high performance design which includes surge rated diode arrays to protect high speed data interfaces. The AZ1013-04F has been specifically designed to protect sensitive components, which are connected to data and transmission lines, from over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), and Lightning. AZ1013-04F is a unique design which includes surge rated, low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1013-04F
Datasheet	AZ1013-04F Download
Manufacturer	Amazing Microelectronic
Description	Low Capacitance ESD Protection Array For High Speed Data Interface
Buy	Stock & Price

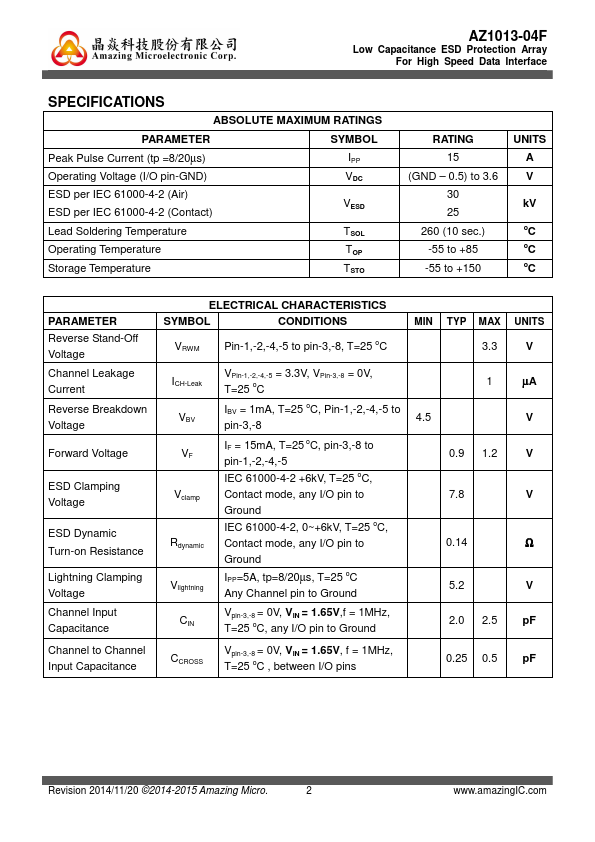

FEATURES

ESD Protect for Low-Voltage Differential Signaling (LVDS) channels Protects four I/O lines Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 15A (8/20µs) For operating voltage of 3.3V and below Low capacitance : 2.0pF typical Fast turn-on and Low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

LVDS Interface USB2.0 Data lines protection Control Signal Lines Protection SIM ports Monitors and Flat Panel Displays Notebook and PC Computers Ethernet port: 10/100/1000 Mb/s Consumer Electronics Set Top Box

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components.
