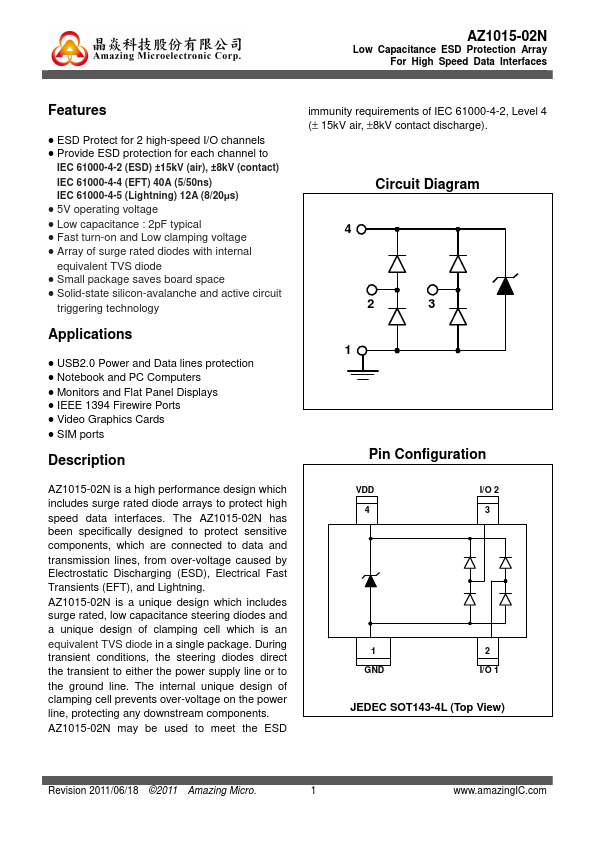

AZ1015-02N
Features
ESD Protect for 2 high-speed I/O channels Provide ESD protection for each channel to
IEC 61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20µs)
5V operating voltage Low capacitance : 2p F typical Fast turn-on and Low clamping voltage Array of surge rated diodes with internal equivalent TVS diode Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology
Applications
USB2.0 Power and Data lines protection Notebook and PC puters Monitors and Flat Panel Displays IEEE 1394 Firewire Ports Video Graphics Cards SIM ports
Description immunity requirements of IEC 61000-4-2, Level 4 (± 15k V air, ±8k V contact discharge).
Circuit Diagram
Pin Configuration
AZ1015-02N is a high performance design which includes surge rated diode arrays to protect high speed data interfaces. The AZ1015-02N has been specifically designed to protect sensitive ponents, which are connected to...
